SF Type Flotation Machine

SF Type Flotation Machine

XJ and SF flotation machines are high-efficiency mineral separation equipment. Widely used in mining, metallurgy, chemical, and construction industries, they suit the sorting of copper, lead, zinc, gold, silver, molybdenum, fluorite, barite, and other ores.

Effective Volume: 1.1-50 (m³)
Capacity: 0.6-46(m³/min)
Suitable For: Metal Ores Including Copper, Lead, Zinc, Gold, Silver, Molybdenum, As Well As Non-Metallic Minerals Like Fluorite And Barite.
Superior Separation Performance
Wide Material Compatibility
Stable & Durable Operation
Cost-effective & Easy Maintenance

Get Price Now Get Online Services

We Always Focus On Optimizing the User Experience Of Our Products

1. Superior Separation Performance

Adopts an optimized aeration stirring structure, boosts ore recovery and concentrate quality remarkably.

2. Wide Material Compatibility

Fits various metal and non-metal ores, meets diverse mineral flotation demands.

3. Stable & Durable Operation

Solid structural design ensures steady long-term running, with a low failure rate.

4. Cost-effective & Easy Maintenance

Compact layout, simple daily upkeep, cuts overall production cost.

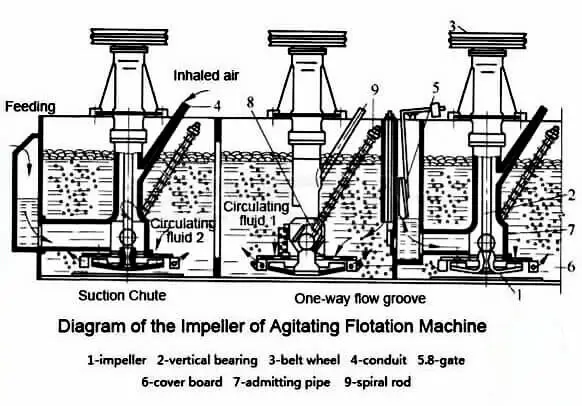

Working Principle

The SF-type flotation machine uses an electric motor to drive the impeller to rotate at high speed, creating a negative pressure zone within the impeller cavity, thus achieving self-aspiration and self-slurry intake. The slurry enters the mixing zone from the bottom and middle of the tank through the upper and lower suction ports of the impeller. Simultaneously, air is drawn into the upper impeller cavity through the suction pipe and the central cylinder, thoroughly mixing with the slurry to form numerous fine bubbles. Under the action of the stator and turbulence plates, the bubbles are uniformly dispersed across the tank cross-section, and mineral particles selectively adhere to the bubble surface, forming mineralized bubbles that float to the froth layer and are scraped off by the scraper to become the concentrate product. The unmineralized slurry then enters the next tank for further processing through the circulation holes or the middlings box, achieving multi-stage continuous flotation.

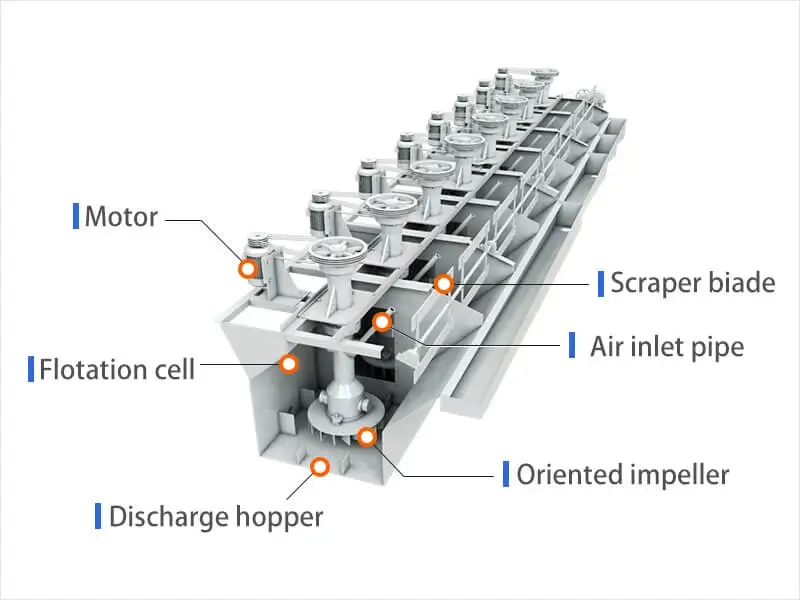

Product Structure

The SF-type flotation machine mainly consists of the following components:

Tank: Forward-inclined U-shaped or stepped design to reduce dead zones and promote slurry circulation.

Impeller and Main Shaft: Impeller with backward-inclined double-sided blades to achieve dual circulation of slurry; the main shaft connects to the motor drive system.

Cover Plate and Guide Device: Works in conjunction with the impeller to stabilize the flow and guide the slurry flow.

Motor and Drive System: Typically uses a V-belt drive to drive the impeller.

Scraper Device: Used to scrape frothy concentrate; can be configured on one or both sides.

False Bottom and Guide Pipe (equipped when volume > 10m³): Optimizes the internal flow field and improves separation efficiency.

CASES

Turkey Limestone Crushing Line

Project Overview This quarry project in Turkey processes limestone raw materials. Affected by rainy weather,...

DRC Tantalum-Niobium Ore Recovery Line

Project Overview The project targets associated tantalum-niobium and ilmenite minerals. It adopts a combined...

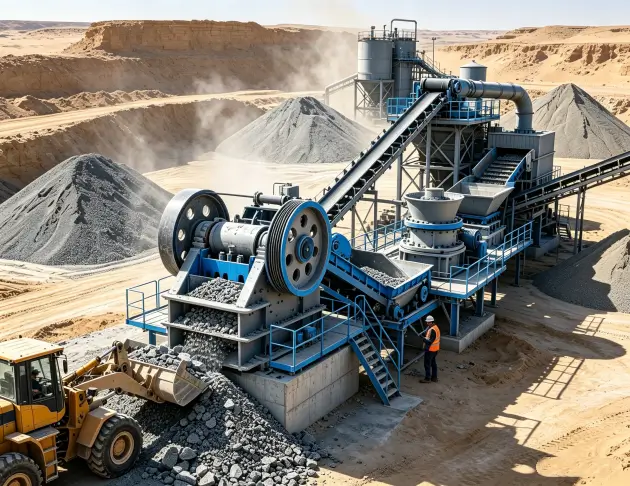

Saudi Arabia Granite Sand Making Line

Project Overview This project is built in Saudi Arabia, mainly focusing on granite manufactured sand...

Chile Copper Ore Flotation Plant

Project Overview This flotation production line is designed for impurity removal and high-grade concentration...

Choose The Match That Best Suits You

Technical Parameters

Model	Effective Volume (m³)	Internal Dimensions (mm)	Capacity (m³/min)	Impeller Motor Power (kW)	Weight per Cell (kg)	Air Intake Volume (m³/min)
SF-1.2	1.2	1100×1100×1100	0.6-1.2	5.5	1450	1-1.1
SF-2.8	2.8	1700×1600×1150	1.4-3.0	11	2210	0.9-1.1
SF-4	4	1900×2000×1200	2-4	15	2720	0.9-1.1
SF-8	8	2200×2900×1400	4-8	30	4280	0.9-1.1
SF-10	10	2200×2900×1700	5-10	30	4800	0.9-1.1
SF-16	16	2900×3800×1700	8-16	37	8430	0.9-1.1
SF-20	20	2900×3800×2000	10-20	45	8810	0.9-1.1
SF-24	24	3100×4200×2000	12-24	45	8910	0.9-1.1
SF-30	30	3400×4500×2100	15-30	55	14130	0.9-1.1
SF-40	40	3950×4750×2250	18-40	75	17370	0.9-1.1
SF-50	50	4400×4900×2400	23-46	90	23410	0.9-1.1
