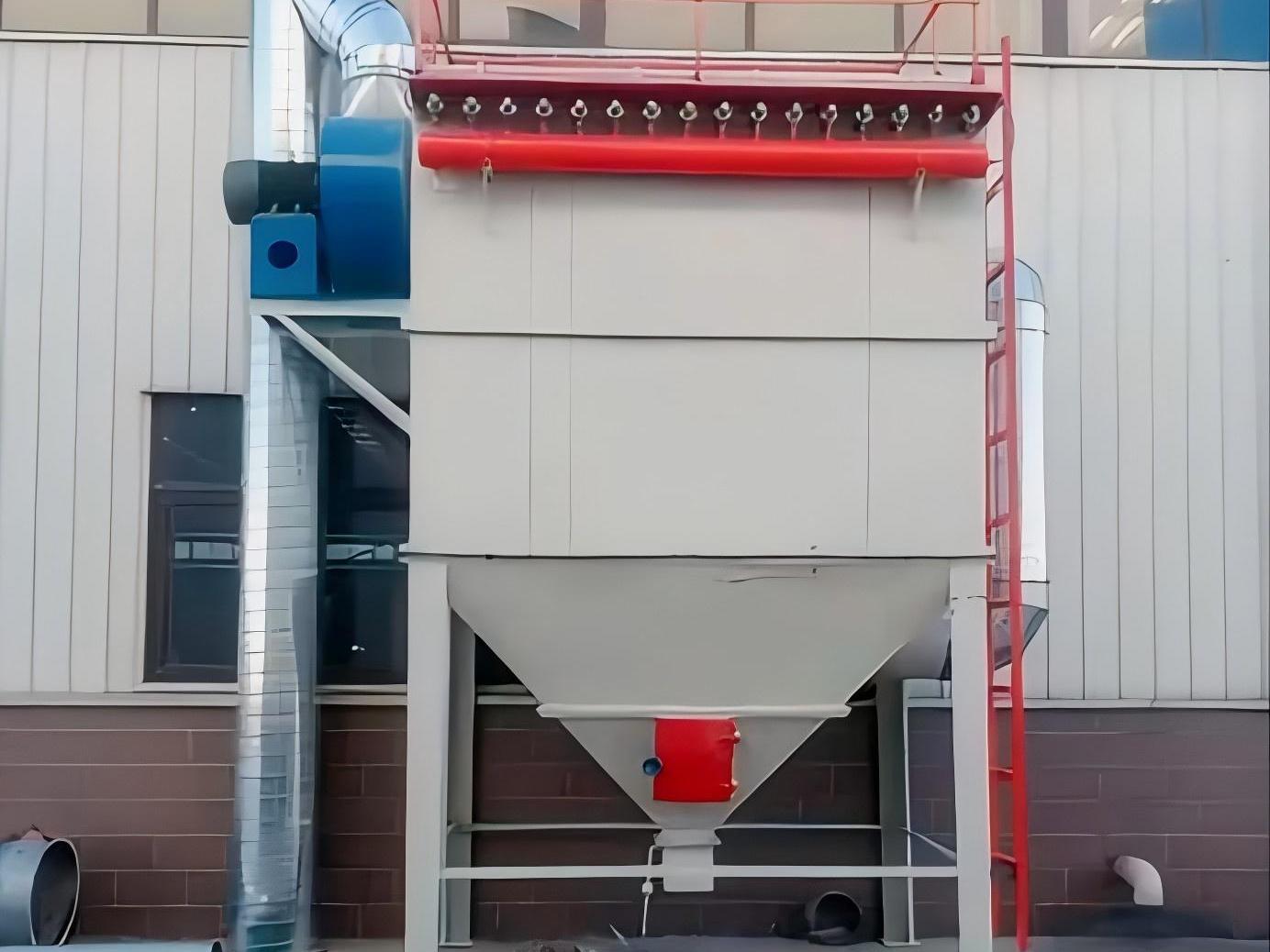

Product Overview
Pulse jet dust collector is a kind of dry dust filter device.It is suitable for collecting fine,dry and non fibrous dust.In recent years,due to the emergence of new synthetic fiber filter material,the continuous improvement of ash removal method and the use of automatic control and detection device make the pulse jet dust collector develop rapidly,which has become the most competitive in all kinds of high-efficiency dedusting equipment.
Main technical parameters
Pulse jet bag dust collector Main technical parameters：
| 规格型号 Model | QM | QM | QM | QM | QM | QM | QM | QM | QM |
| 32-3 | 32-4 | 32-5 | 32-6 | 64-4 | 64-5 | 64-6 | 64-7 | 64-8 | |
| 加工空气体积(m³/h) Volume of processed air | 6900 | 8930 | 11160 | 13390 | 17800 | 22300 | 26700 | 31200 | 35700 |
| 过滤风速 Filter air speed(m/min) | 0.8-2.0(Customize according to technological conditions) | ||||||||
| 总过滤面积 Totalfiltration area(m²) | 93 | 124 | 155 | 186 | 248 | 310 | 372 | 434 | 496 |
| 净过滤面积 Net filtration area(m²) | 62 | 93 | 124 | 155 | 186 | 248 | 310 | 272 | 434 |
| 过滤室数量Number of filtration chambers | 3 | 4 | 5 | 6 | 4 | 5 | 6 | 7 | 8 |
| 过滤袋数量 Total number of filter bags | 96 | 128 | 160 | 192 | 256 | 320 | 384 | 448 | 512 |
| 尘埃阻力 Resistance of dust(pa) | 1470-1770 | ||||||||
| 进入气体粉尘浓度 Dust concentration of inlet gas (g/Nm³) | <200 | <1000 | |||||||
| 废弃粉尘浓度 Dust concentration of exhaust gas(g/m³) | <0.1 | ||||||||
| 除尘器压力 Pressure drop of dust collector(Pa) | <5000 | ||||||||

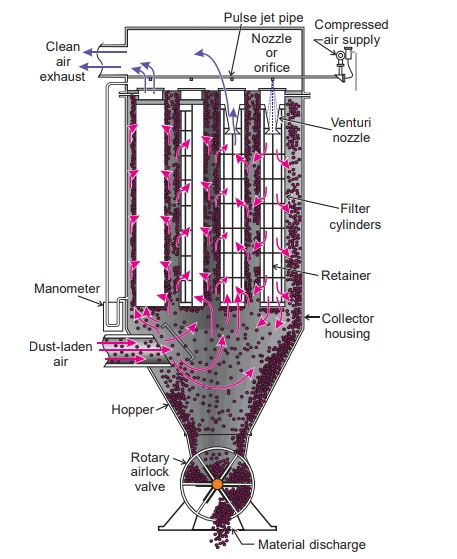

Working principle
The working theory is: the pulse controller on top of dust collector will blow the bags in regular time, preset the pulse length and interval. The action of electromagnetic valve is controlled by pulse controller. The order of electromagnetic valve action is from left to right side.
