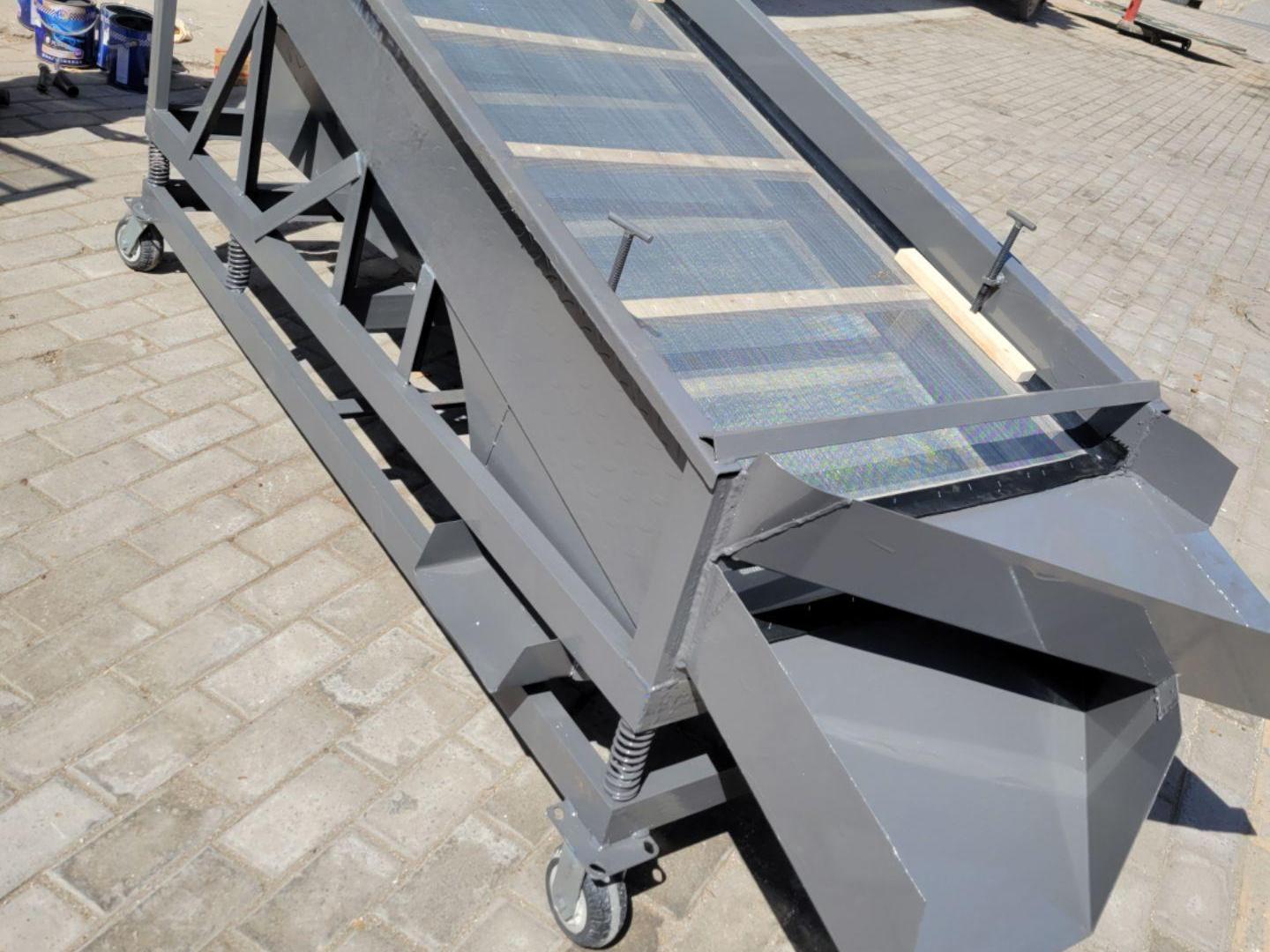

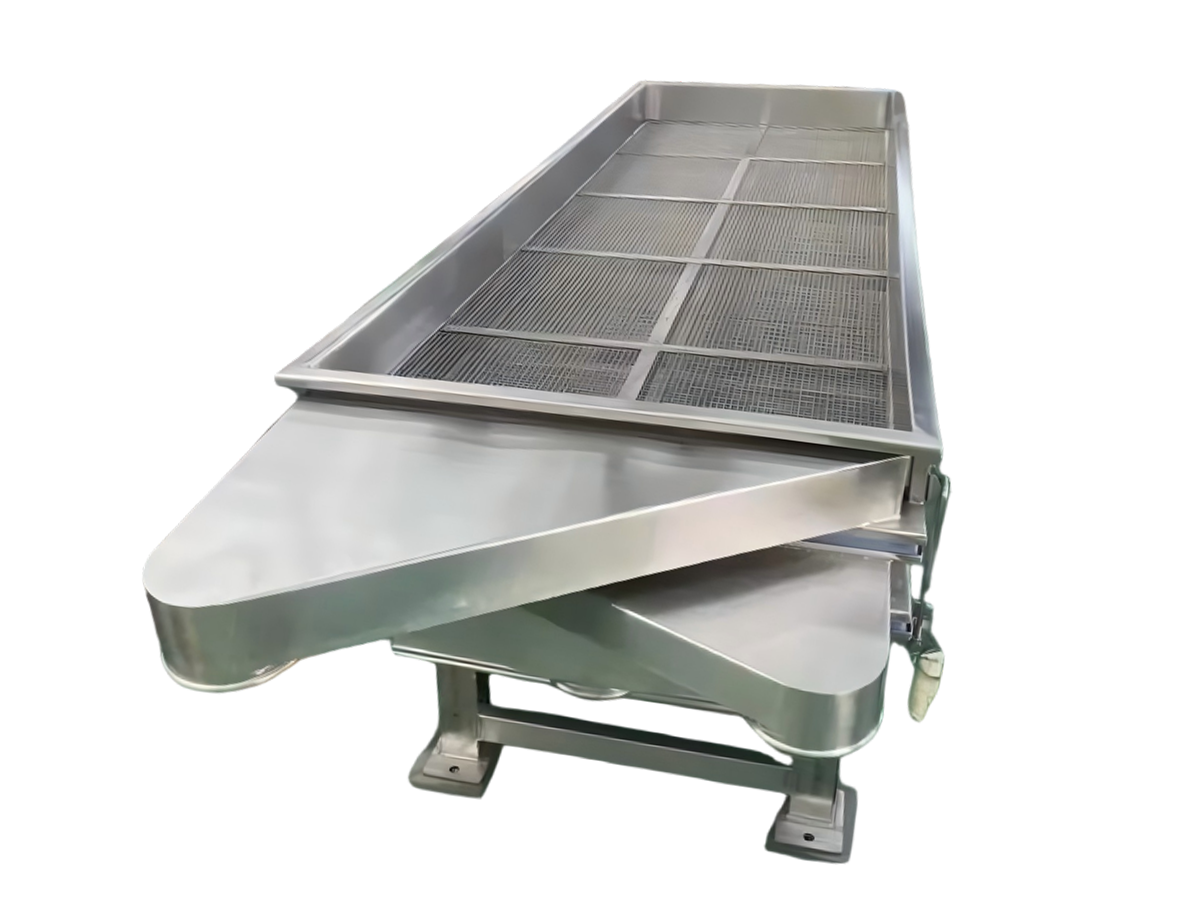

Linear vibrating screen powered by vibratory motor as vibrating source,vibration force up throws the material from the sieve deck and makes the materials move forward by linear motion.Materials are fed into the screen evenly by feeder,being separated by various sieve specifications,and then discharged through different discharging openings.
| 型号 Model | 尺寸 Dimension(mm) |
给料粒度 Input size(mm) |
倾斜度Inclination(") | 振幅 Amplitude(mm) |
筛面层数 Layer |
功率 Power(kw) |
| SZF-520 | 500×2000 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(0.37-0.75) |
| SZF-525 | 500×2500 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(0.37-0.75) |
| SZF-1020 | 1000×2000 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(0.37-0.75) |
| SZF-1025 | 1000×2500 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(0.37-1.1) |
| SZF-1030 | 1000×3000 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(1.1-1.5) |
| SZF-1040 | 1000×4000 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(1.1-1.5) |
| SZF-1235 | 1200×3500 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(1.1-2.2) |
| SZF-1250 | 1200×5000 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(1.1-2.2) |
| SZF-1535 | 1500×3500 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(1.1-2.2) |
| SZF-1548 | 1500×4800 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(1.1-2.2) |
| SZF-1560 | 1500×6000 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(2.2-3) |
| SZF-1845 | 1800×4500 | 0.074-10 | 0-7 | 4-10 | 1-6 | 2×(2.2-3) |
| SZF-2050 | 2000×5000 | 0.074-15 | 0-7 | 4-10 | 1-6 | 2×(2.2-3) |
| SZF-2260 | 2200×6000 | 0.074-15 | 0-7 | 4-10 | 1-6 | 2×(2.2-3) |

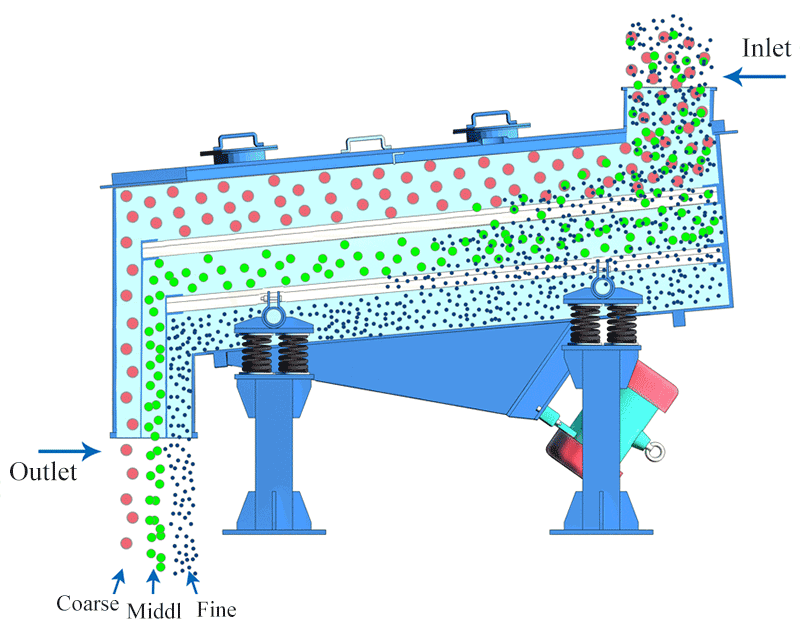

The motor through a vee belt makes the eccentric of the activator start high-speed rotation.The operation of the eccentric block generates a lot of centrifugal force, stimulate the screen forming a certain amplitude circle movement. Materials on the tilted screen surface do continuous throwing movement after receiving the impulse given by the sieving box. During the process of collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.

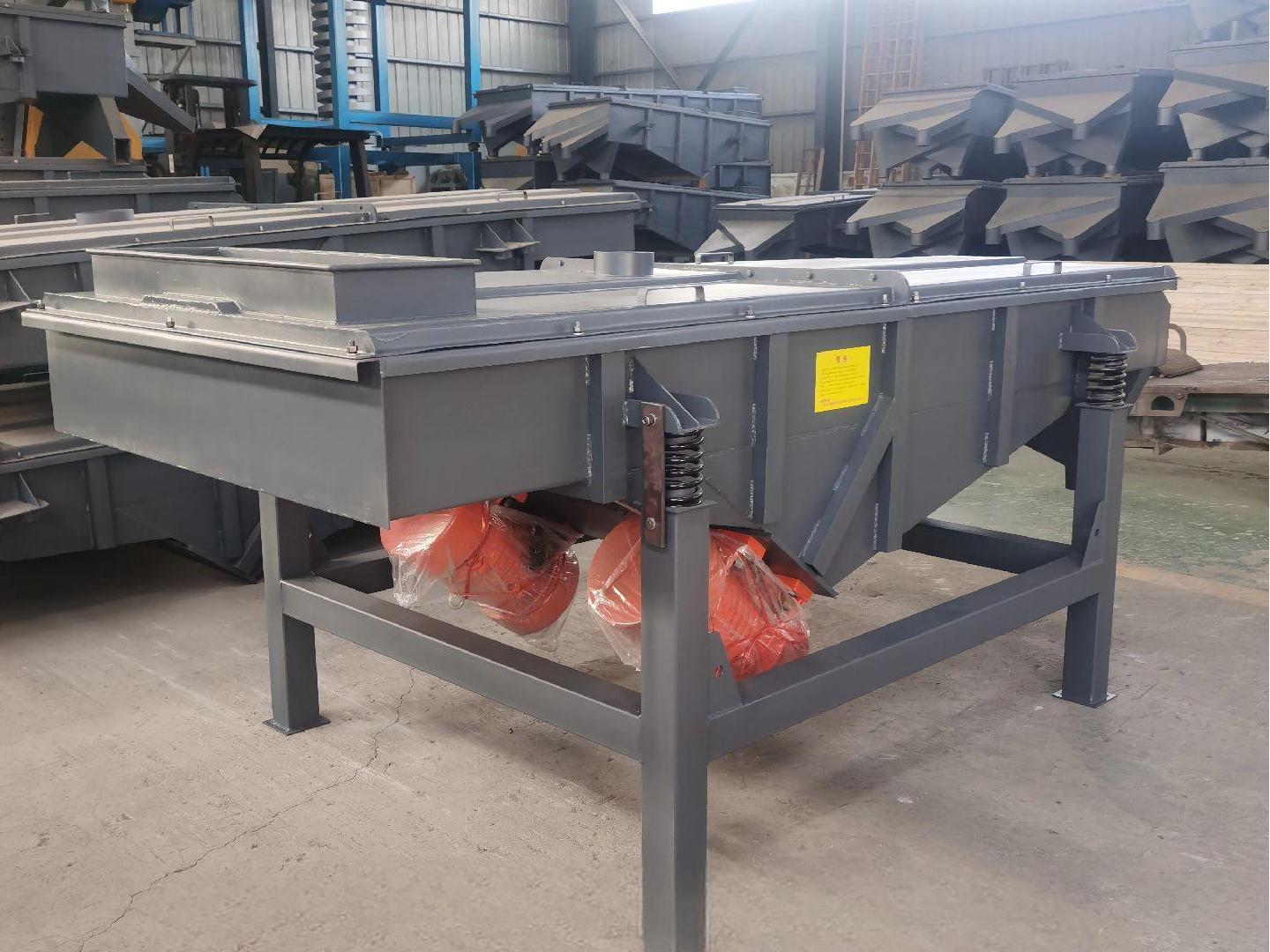

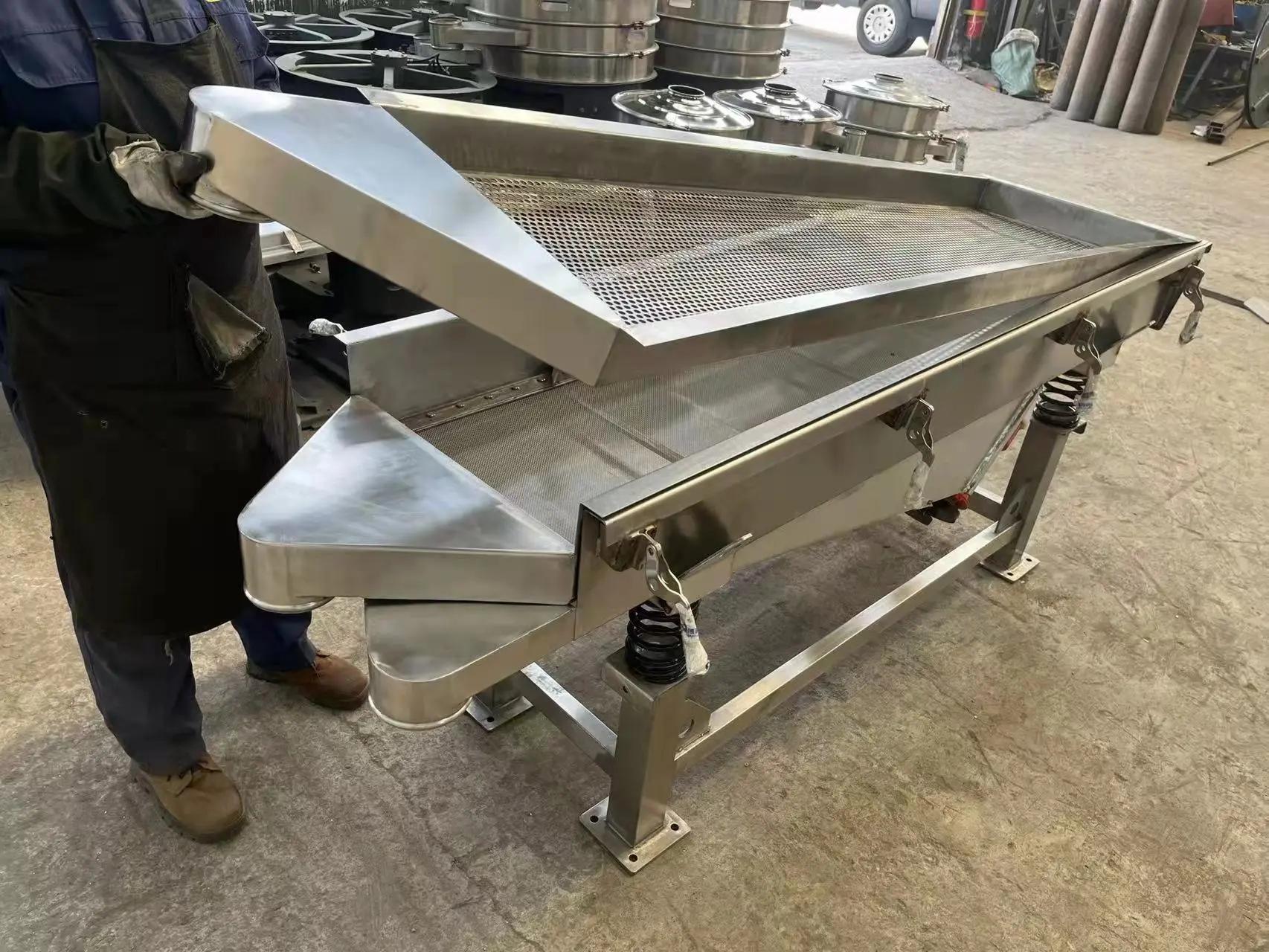

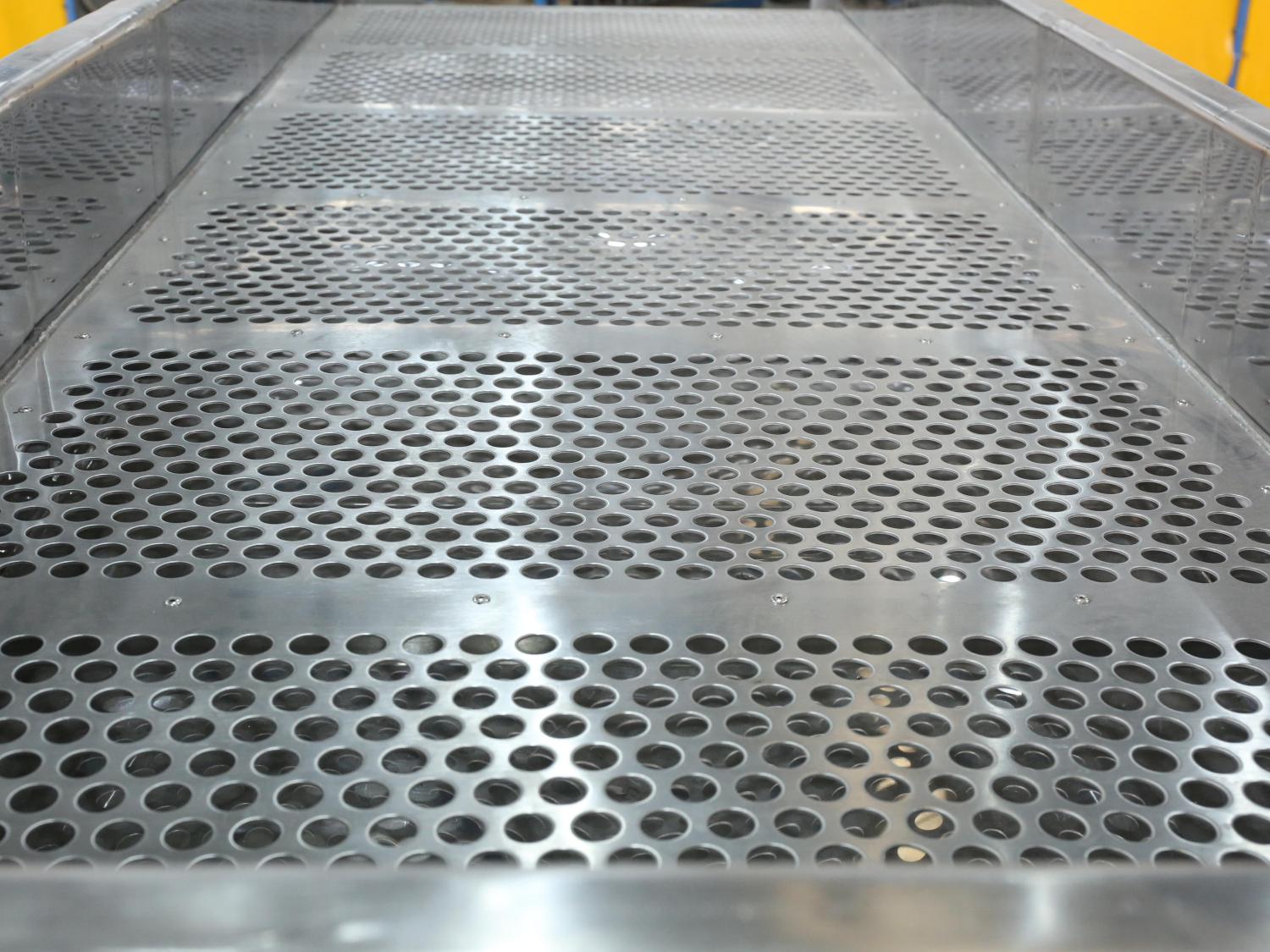

Product Structure：The square linear vibrating screen is mainly composed of a screen box, a screen frame, a screen, a vibration motor, a motor base, a damping spring, a bracket, etc.
