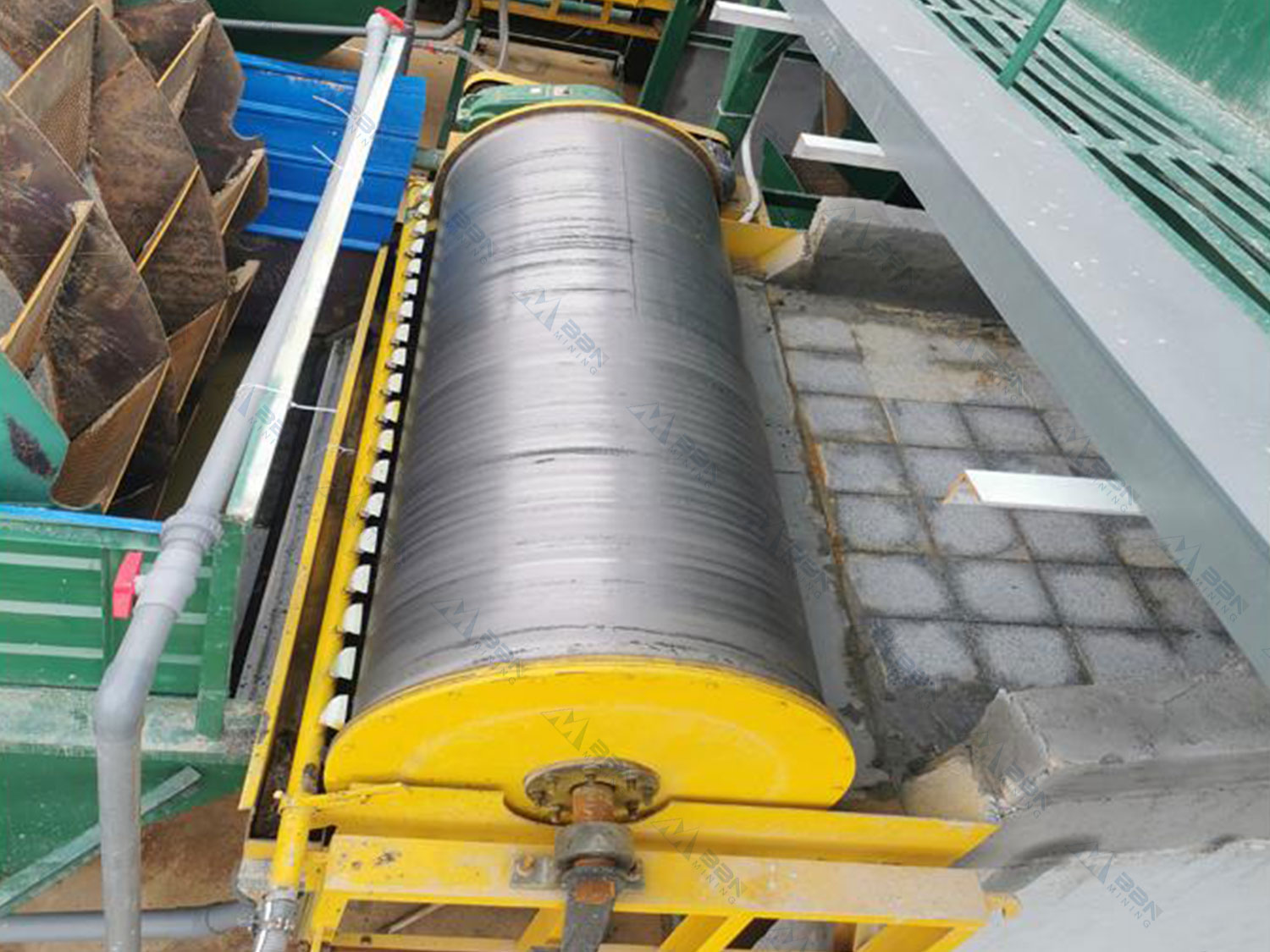

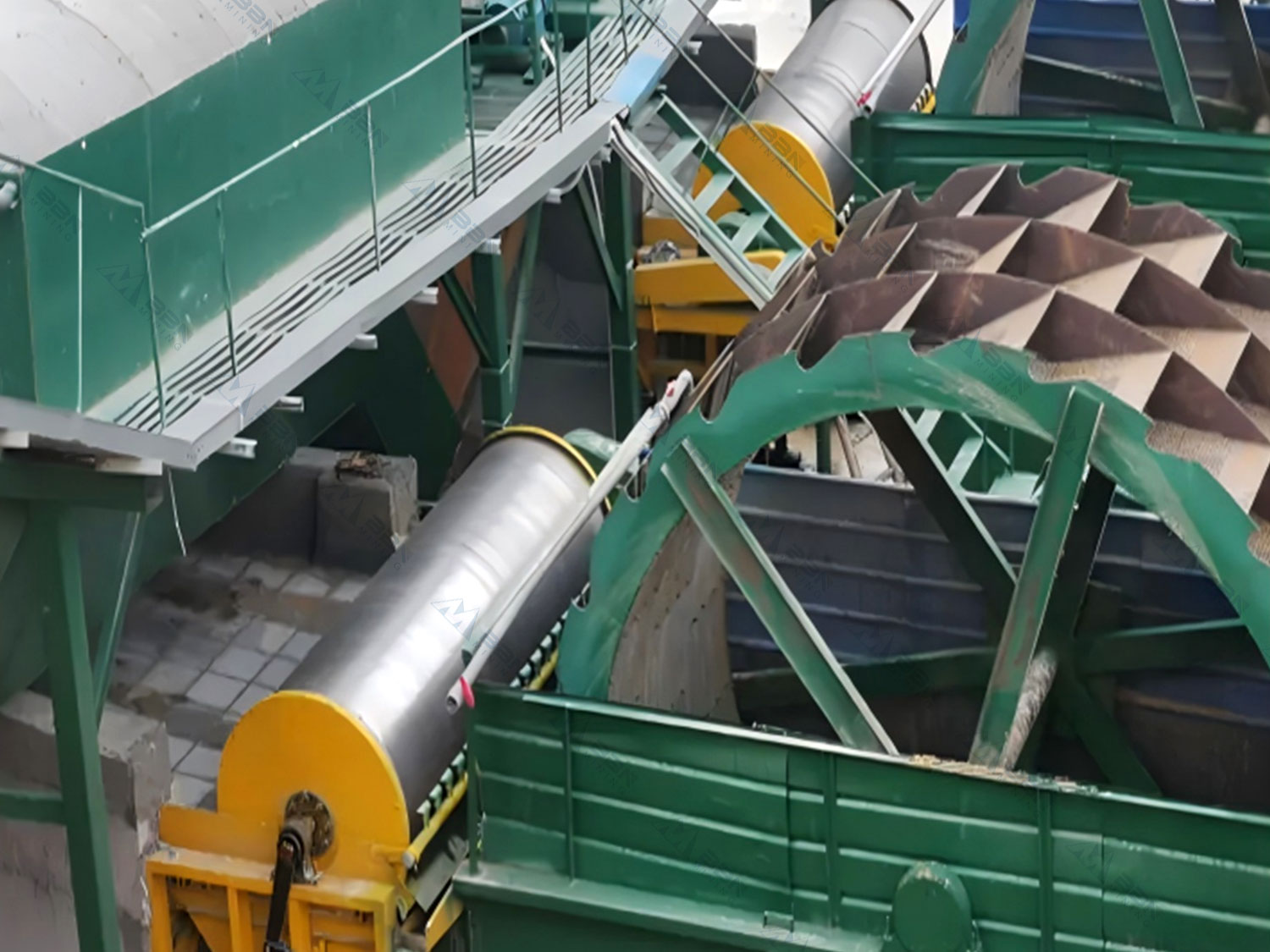

The product is specially suitable for the primary of coarse ore such as river sand , sea sand and some other coarse grained sand mine, which is also used for tailings recovery of magnetic separation in dressing plant .
ADVANTAGES
The magnetic system has a fixed scheme in a reliable way, to avoid the magnetic group fall off and damage, and ensure the equipment run failure-free .
The downstream tub are designed specially, by which the 0-6mm graded materials can be directly for magnetic separation, and it will not have sediment accumulation in the tub while throw the tail, so it's capacity is very large .
It has row of silt institutions on both sides of the tub, which can facilitate cleaning sedimentation in the tub.
PARAMETER
| Model | Diameter (mm) | Length (mm) | Speed (r/min) | Capacity (t/h) | Capacity (m³/h) | Dimensions (L×W×H) (mm) | Power (kW) |
| CTS-712 | 750 | 1200 | 35 | 10-15 | 30-80 | 2330×1770×1280 | 3 |
| CTS-718 | 750 | 1800 | 35 | 20-35 | 50-120 | 2930×1770×1280 | 3.1 |
| CTS-918 | 900 | 1800 | 28 | 25-40 | 80-150 | 3095×1769×1465 | 4 |
| CTS-924 | 900 | 2400 | 28 | 40-55 | 120-190 | 3695×1769×1465 | 4 |
| CTS-1015 | 1050 | 1500 | 21 | 35-50 | 110-180 | 2815×1999×1565 | 5.5 |
| CTS-1018 | 1050 | 1800 | 21 | 45-60 | 130-200 | 3115×1999×1565 | 5.5 |
| CTS-1021 | 1050 | 2100 | 21 | 50-70 | 150-240 | 3415×1999×1565 | 5.5 |
| CTS-1024 | 1050 | 2400 | 21 | 60-80 | 160-280 | 3715×1999×1565 | 5.5 |
| CTS-1027 | 1050 | 2700 | 21 | 70-90 | 180-320 | 4015×1999×1565 | 7.5 |
| CTS-1030 | 1050 | 3000 | 21 | 80-120 | 240-400 | 4315×1999×1565 | 7.5 |
| CTS-1218 | 1200 | 1800 | 19 | 60-75 | 160-260 | 3150×2300×1940 | 5.5 |
| CTS-1224 | 1200 | 2400 | 19 | 80-110 | 240-380 | 3750×2300×1940 | 7.5 |
| CTS-1230 | 1200 | 3000 | 19 | 100-140 | 260-460 | 4350×2300×1940 | 11 |
| CTS-1236 | 1200 | 3600 | 19 | 120-160 | 300-550 | 5235×2300×1940 | 15 |
| CTS-1240 | 1200 | 4000 | 19 | 130-180 | 340-600 | 5635×2300×1940 | 15 |
| CTS-1245 | 1200 | 4500 | 19 | 140-190 | 380-660 | 6135×2300×1940 | 18.5 |
| CTS-1540 | 1500 | 4000 | 15 | 160-220 | 400-700 | 5960×2600×2420 | 22 |
| CTS-1545 | 1500 | 4500 | 15 | 180-250 | 450-800 | 6465×2600×2420 | 22 |
| CTS-1550 | 1500 | 5000 | 15 | 200-280 | 500-900 | 6965×2600×2420 | 30 |
