The toothed roller crusher (also known as the double-toothed roller crusher) is a mechanical device used for crushing medium- to low-hardness brittle materials, primarily applied in coal, mining, metallurgy,gravel yards, and coal preparation plants. Its core function is to generate shearing force through the opposing rotation of double-toothed or four-toothed rollers, splitting and crushing materials such as coal, coke, and coal gangue. It features a high crushing ratio, uniform particle size, and low over-crushing rate.

Roller Crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc.

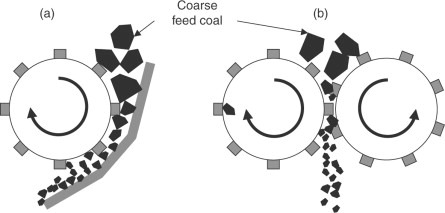

The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls.

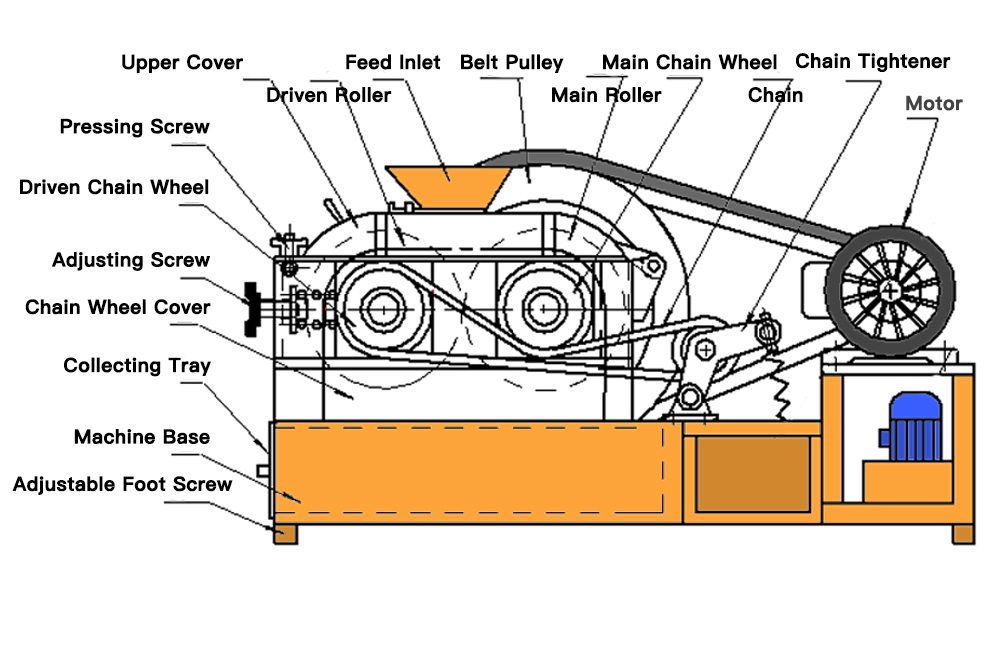

The roller crusher is composed of the crushing rollers, adjustment device, spring safety device, transmission device, and frame.

Advantages

1. It gives a very fine product size distribution and produces very little dust or fines.

2. It is effectively used in minerals crushing where the ores are not too abrasive and it is also used in smaller scale production mining of more abrasive metal ores, such as gold.

3. Coal is probably the largest user of roll crusher currently. Coal plants will use roll crushers, either single roller or double roller crusher glass. Usually, this crusher will have teeth or raised forms on the face of the roll. (Double teeth roller crusher used for minerals and metal ores have smooth faced rolls.)

4. Besides, this roller is easy to operate, low in consumption, stable in running and simple in fabrication.

5. It is stable operation, easy maintenance, low cost, output size adjustable.
