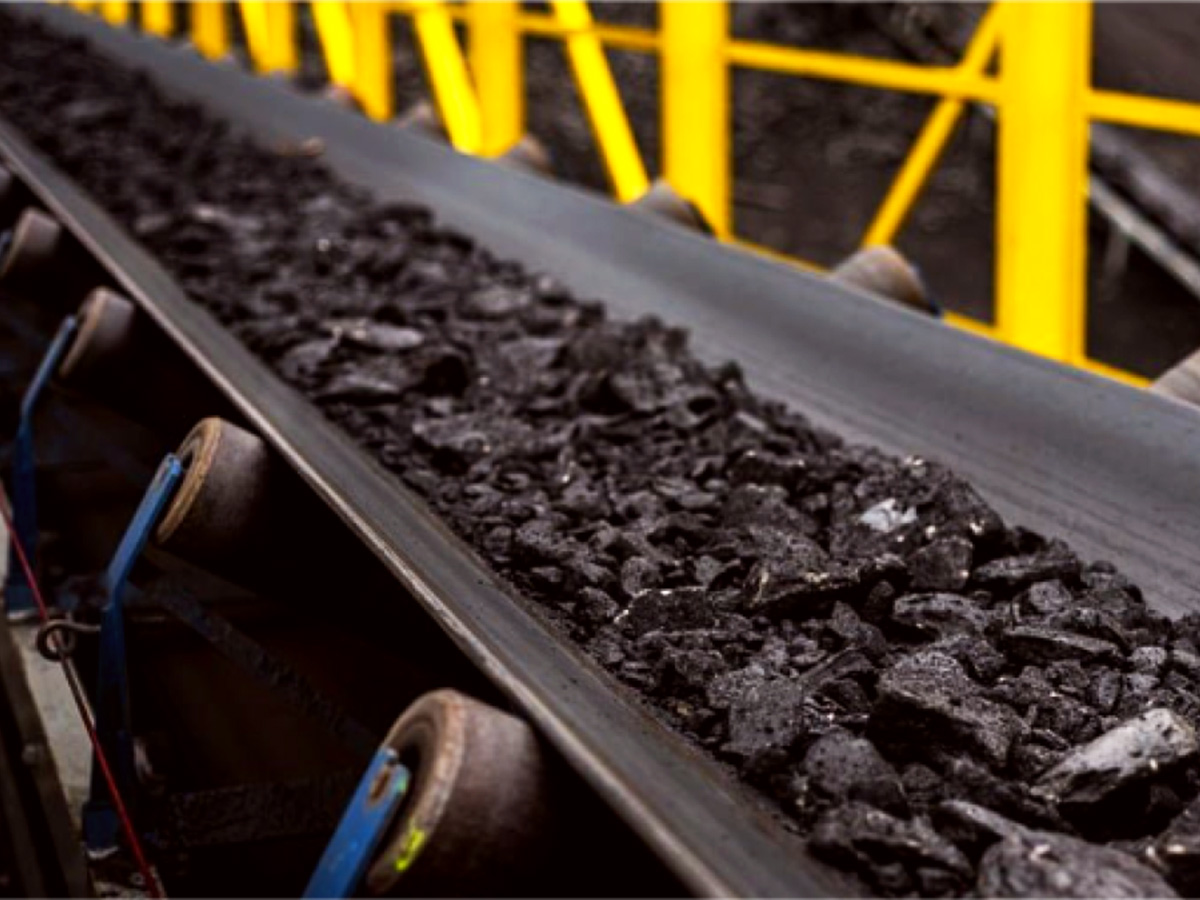

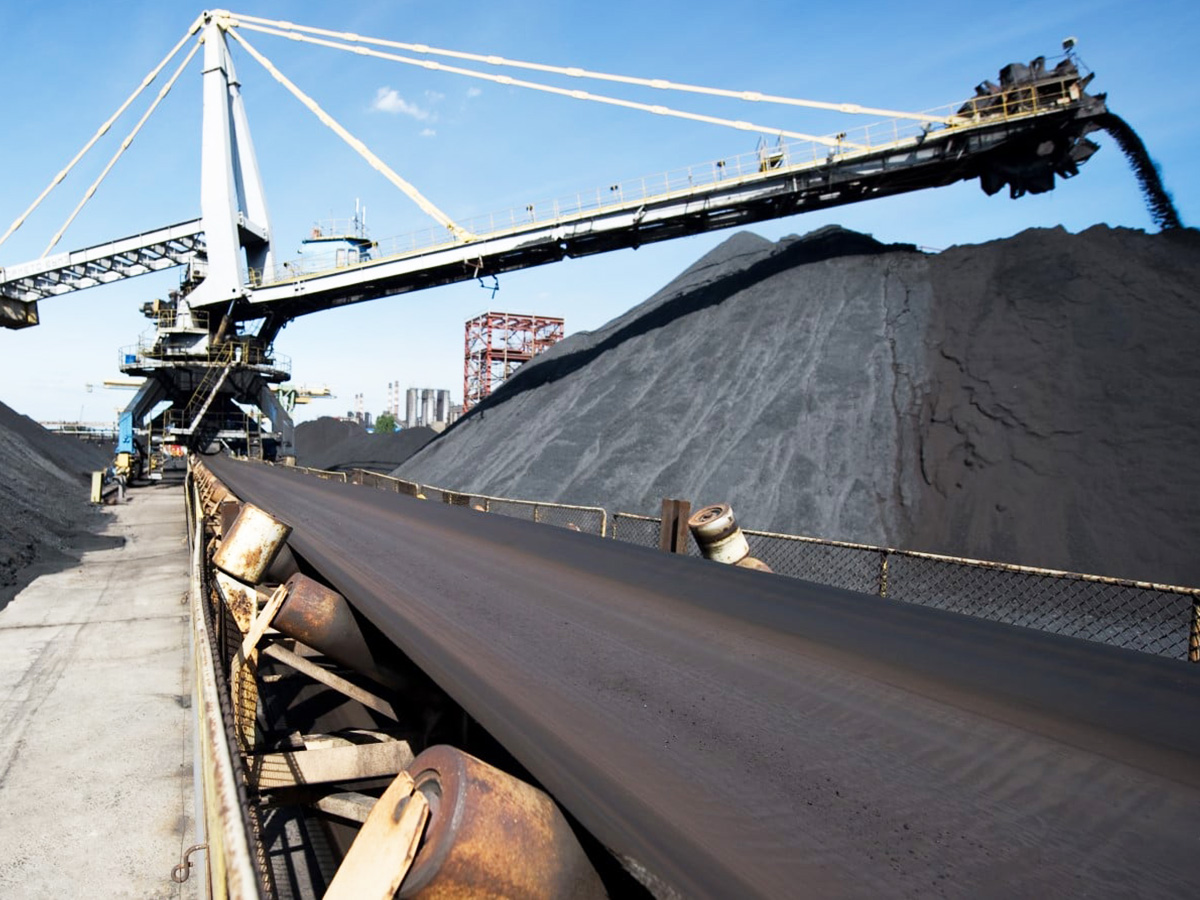

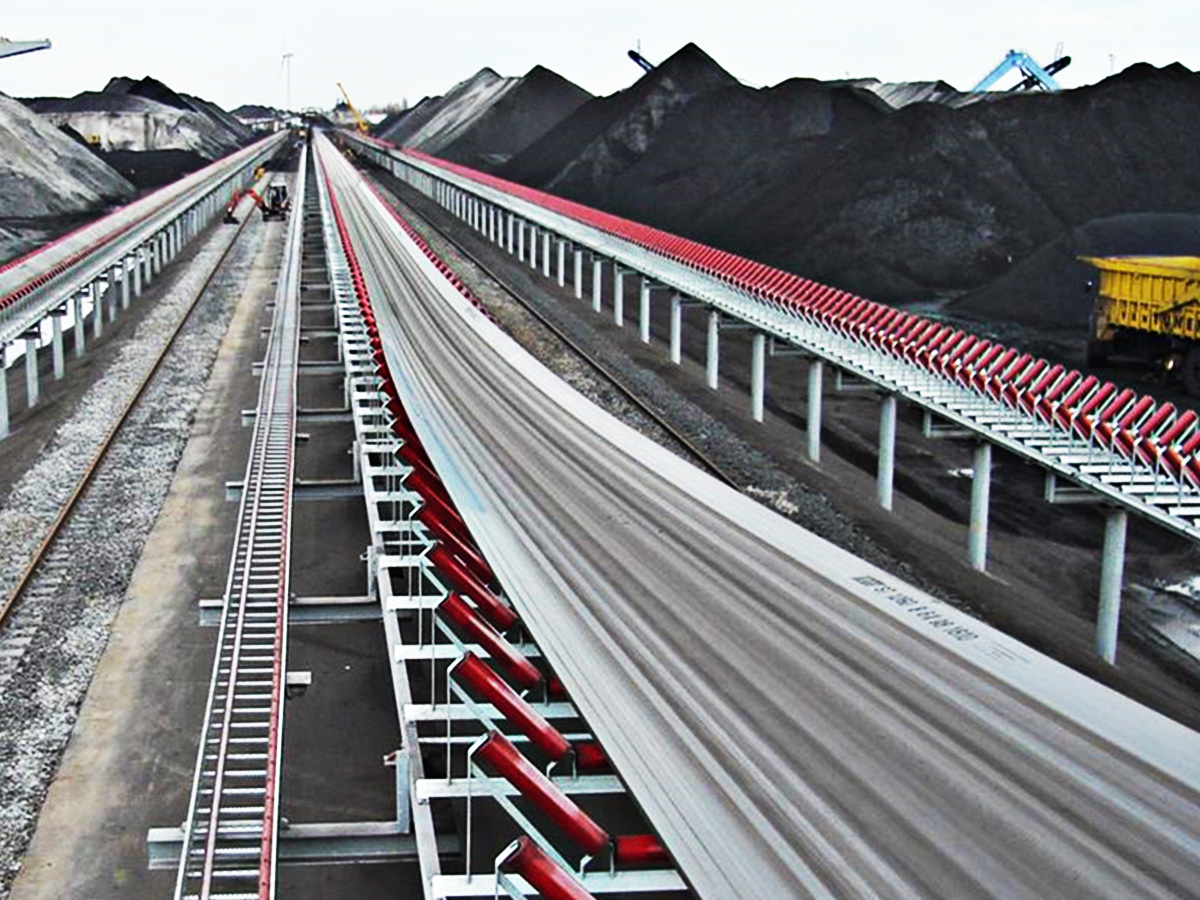

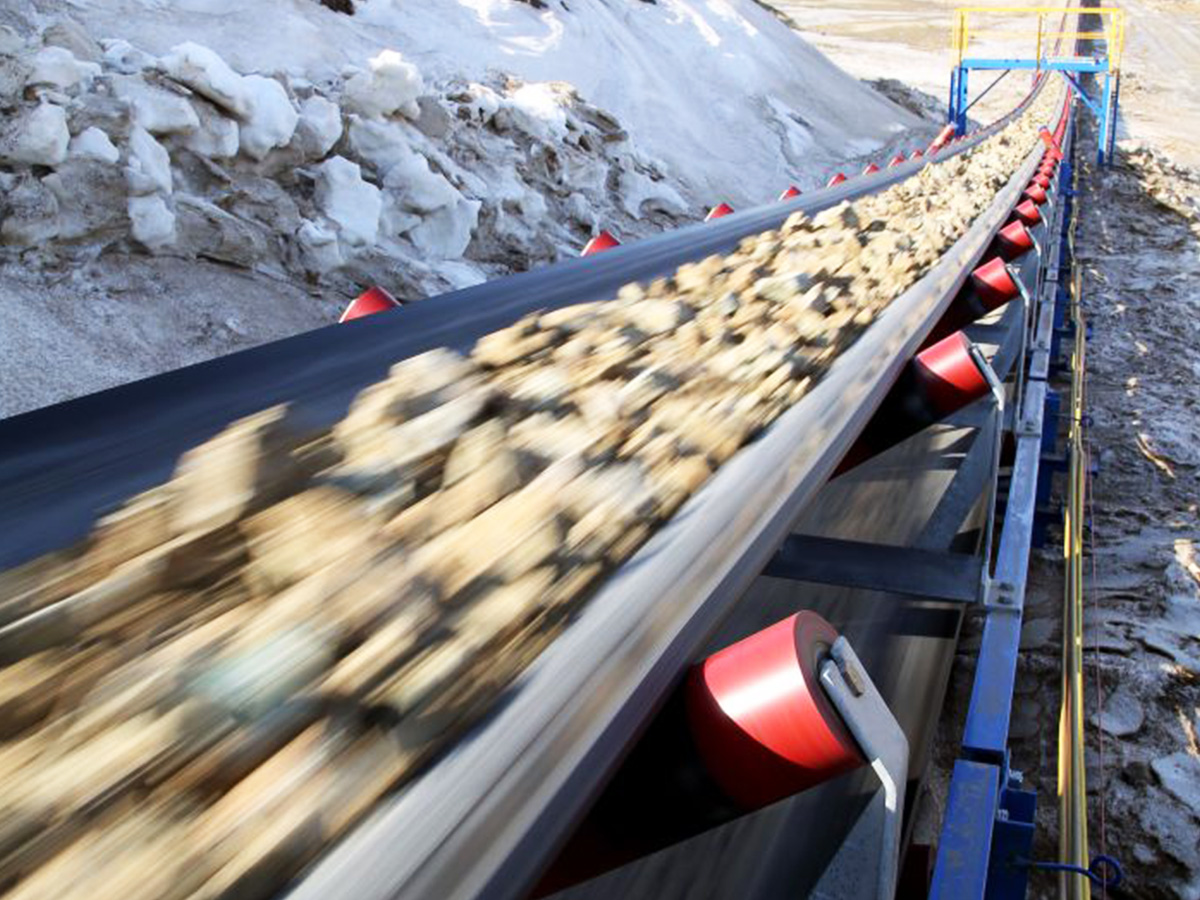

Belt conveyor is a friction driven machine that transports materials in a continuous manner.It is mainly composed of a frame,a conveyor belt,a belt roller,a tensioning device,a transmission device and so on.It can form a material conveying process between the initial feeding point and the final discharging point on a certain conveying line.It can carry out the transportation of broken materials as well as the transportation of individual items.In addition to pure material handling,it can also be combined with the requirements of the process in the production process of various industrial enterprises to form a rhythmic flow line.
| 型号Model | 皮带宽度 Width of Belt(mm) |
输送长度Diameter(m)/功率power(kw) | 带速Speed (m/s) | 输送量Capacity (t/h) | ||||
| B500 | 500 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | / | / | 0.8-2 | 20-40 |
| B650 | 650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | / | / | 40-60 | |
| B800 | 800 | ≤10/5.5 | 10-15/7.5 | 15-20/11 | 20-25/15 | 25-30/18.5 | 1.0-2 | 50-80 |
| B1000 | 1000 | ≤10/7.5 | 10-15/11 | 15-23/15 | 15-23/15 | 23-30/18.5 | 100-150 | |
| B1200 | 1200 | ≤10/11 | 10-18/15 | 18-22/18.5 | 22-25/22 | 25-30/30 | 150-250 | |
A belt conveyor mainly consists of two end pulleys and an endless conveyor belt tightly fitted around them. The pulley that drives the rotation of the conveyor belt is called the drive pulley (or transmission pulley); the other pulley, which only serves to change the direction of the belt's movement, is called the bend pulley. The drive pulley is powered by an electric motor through a reducer, and the conveyor belt is dragged by the friction between the drive pulley and the belt itself. The drive pulley is generally installed at the discharge end to increase traction force, which facilitates dragging. Material is fed in from the feeding end, falls onto the moving conveyor belt, and is transported by the friction of the belt to the discharge end for unloading.
Product Structure：A belt conveyor mainly consists of a frame, a conveyor belt, idlers, pulleys, a tensioning device, and a transmission device.
