1.Capacity of Screen plant is determined of feeding size and discharging size
2.Standard  Devices:belt conveyor,vibrating screen,handle control device,wire-less  remote controller
3.Optional  Devices:product  return sytem,magetic separator,dust spraying system

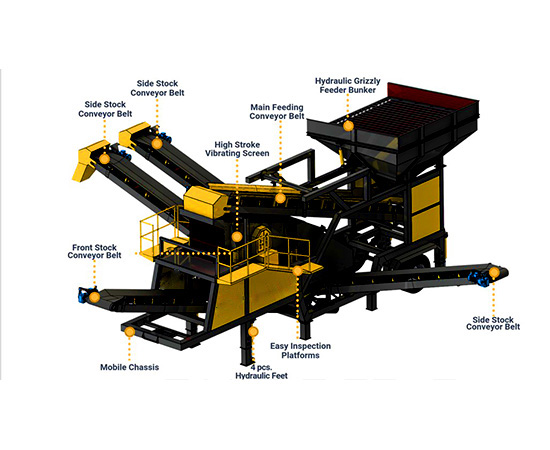

优势Advantages

Diesel generator
When there is no power supply, there is a diesel engine to generate electricity, which makes the whole screening plant run smooth and reliable.

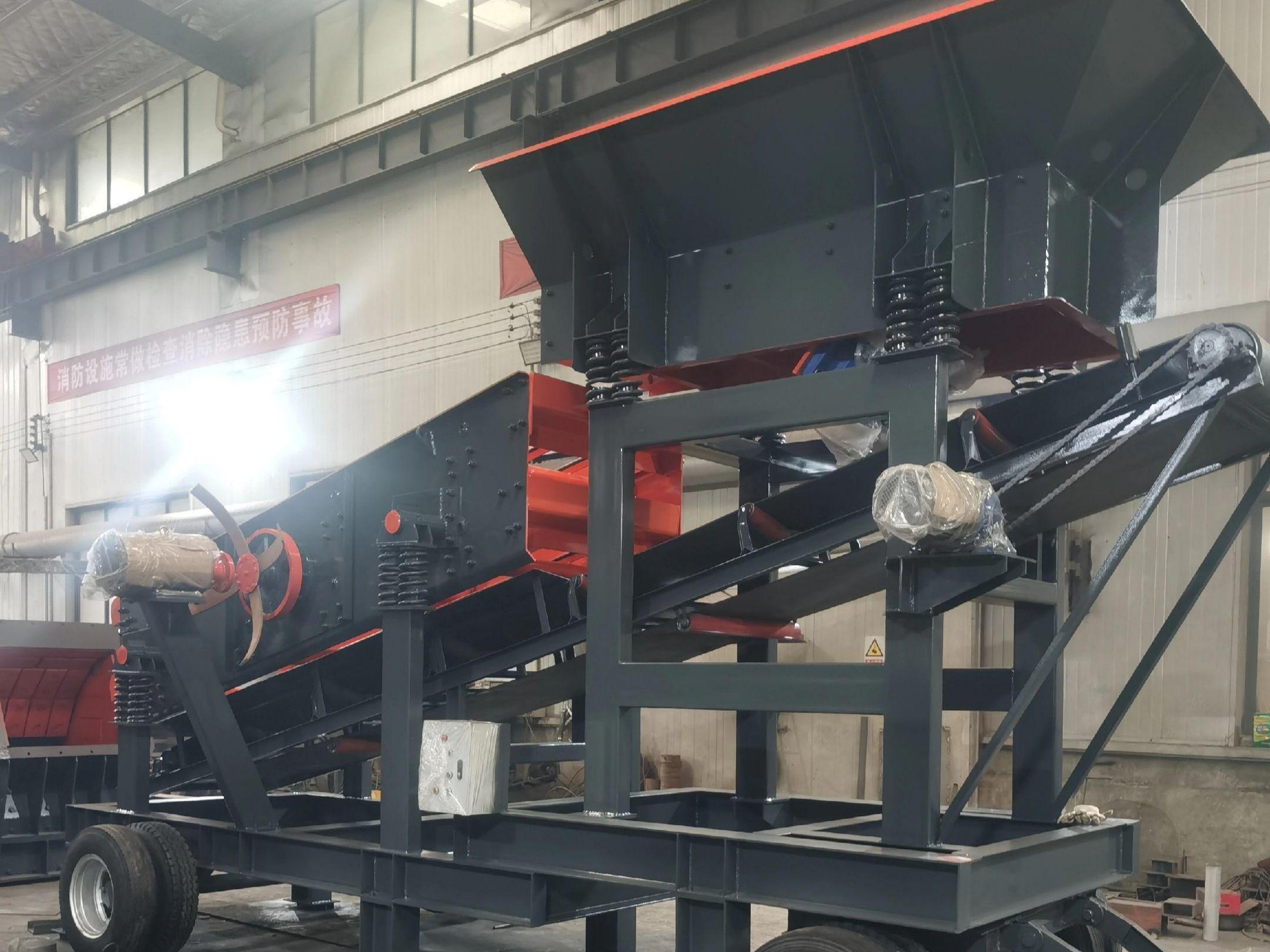

Hopper
The hopper of the plant installs screen with mesh 75 mm, which can prescreen the over-sized material.

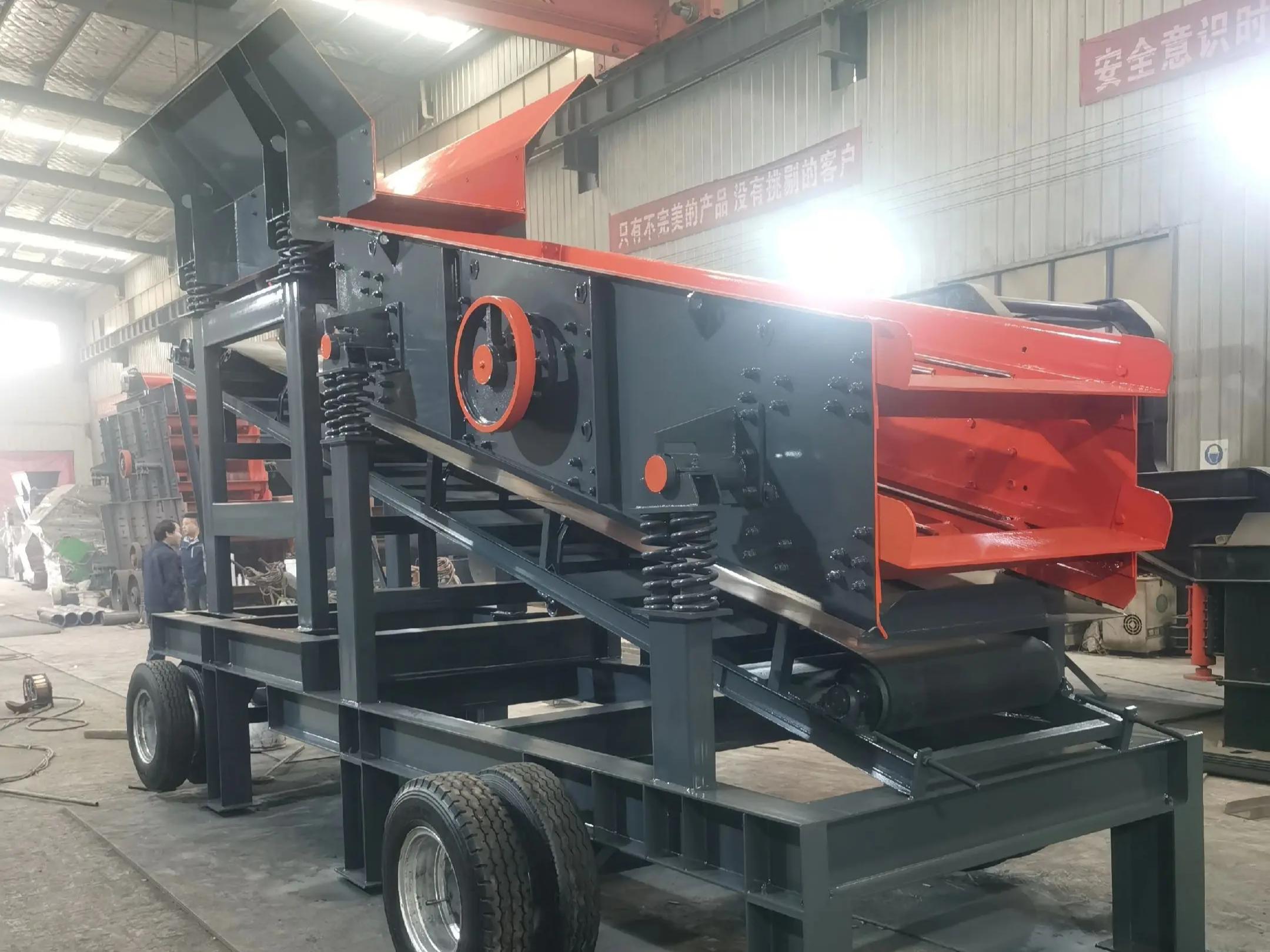

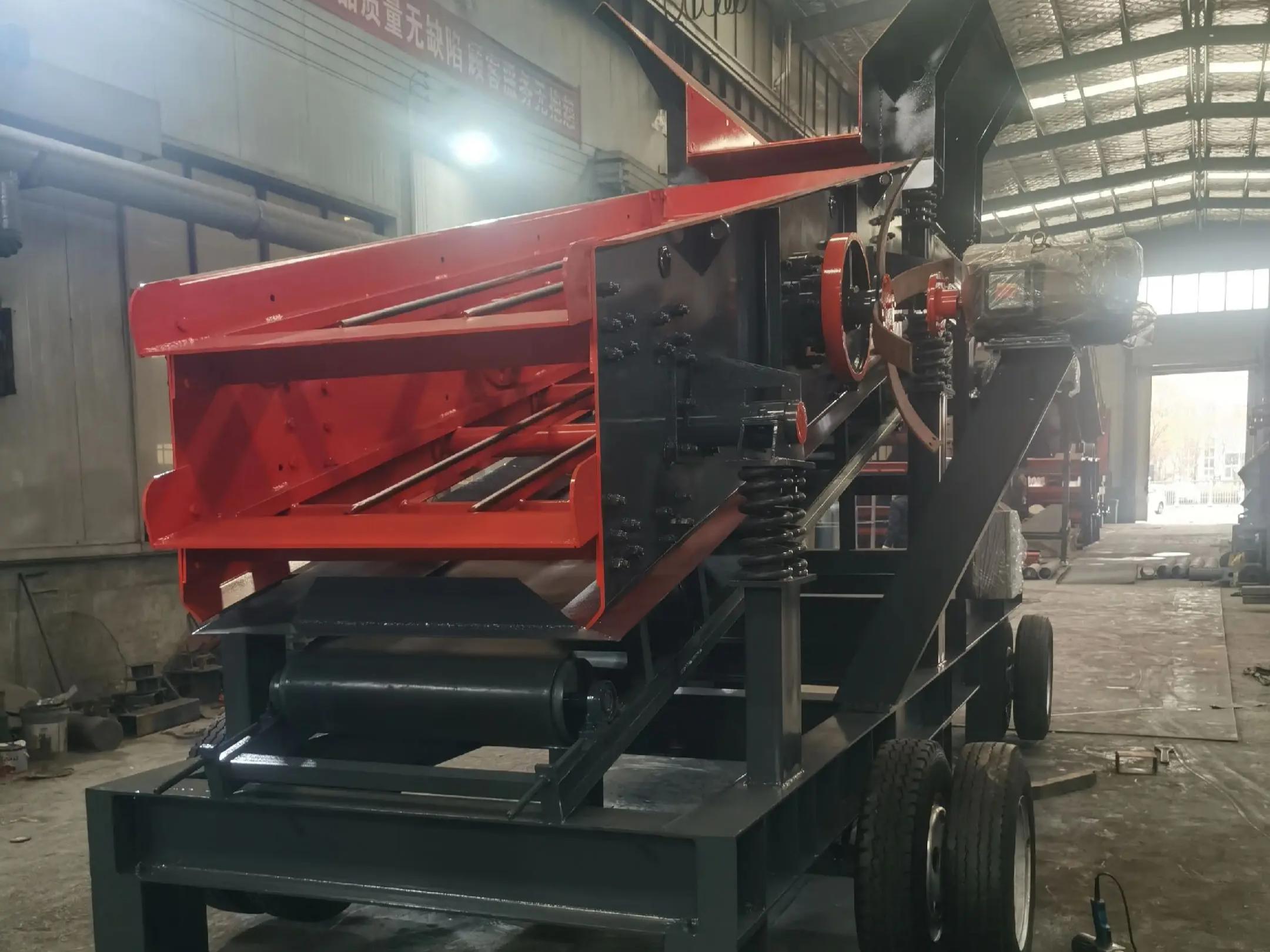

Vibrating Screen with Washing Jets
All three decks of 6.1 m×1.5 m can achieve large-area screening.
At the top of the deck, there is a high density and pressure washing jet with groove on its top.
The washing jet can wash material from top deck to bottom deck when screening, which also improve the water utility.
Finally, the washed materials in three sizes including 5-10 mm, 10-20 mm, 20-75 mm would be discharged by the conveyor belt.
Folding type feeding and stock conveyor belts
The angle of the super-large conveyor can be adjusted hydraulically within the range of 15º to 24º.
By dog lead remote control, operator can safely adjust the conveyor belt to the best angle.

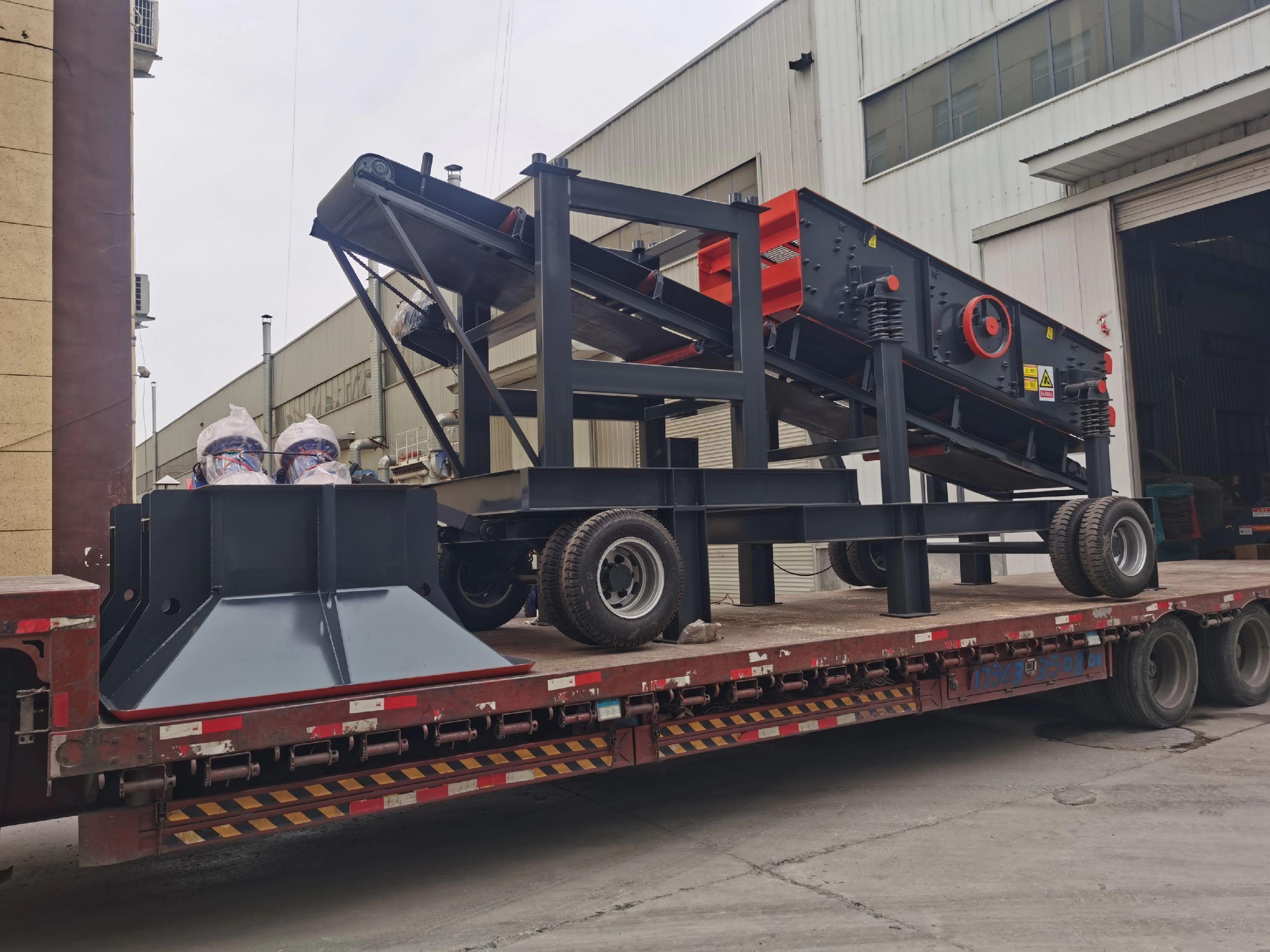

Mobile Chassis with axles and tires
The heavy-duty tracks can mount and adapt to various harsh environments. Besides, it also creates the most safety environment for operators and workers.
