Mobile jaw crushing plant adopts multistage crush process in crushing large size materials.It is used in mining,building material,highway,railway,water conservancy and other industries for a complete crushing and screening operation,which can produce the required size and capacity.
| 项目Item | NG938E69 | NG1142E710 | NG1349E912 |
| 运输长度Transport length(mm) | 12150 | 13000 | 14600 |
| 运输宽度Transport width (mm) | 2550 | 2550 | 2550 |
| 运输高度Transport height (mm) | 3950 | 4400 | 4500 |
| 最大长度Maximum length(mm) | 12150 | 13300 | 14600 |
| 最大宽度Maximum width(mm) | 2800 | 2950 | 3300 |
| 最大高度Maximum height(mm) | 3960 | 4840 | 5300 |
| 轮胎配置Tire configuration | Two axis | Three axis | Three axis |
| 破碎机型号Model of Crusher | PE600×900 | PE750×1060 | PE900×1200 |
| 最大进料粒度The largest feed size(mm) | 480 | 630 | 750 |
| 处理量Processing capacity (t/h) | 80-120 | 120-200 | 200-320 |
| 给料机型号Feeder type | GZD960×3800 | GZD1100×4200 | GZD1300×4900 |
| 主皮带机型号Main belt type | B800×8.5m | B1000×9m | B1200×9.5m |
| 发电机组型号(选配) Type of generator set(optional)(kw) |
200 | 250 | 300 |
| 除铁器型号(选配) Type of iron remover(optional) |
RCYD-8 | RCYD-10 | RCYD-12 |
When the mobile jaw crusher is working, the forklift loads the material into the feeding equipment of the mobile crusher, and the material is evenly transported to the crushing unit module by the feeding equipment, and then transported from the conveying module to the screening module after crushing. The qualified materials are screened out and transported to the finished material stacking area for storage.

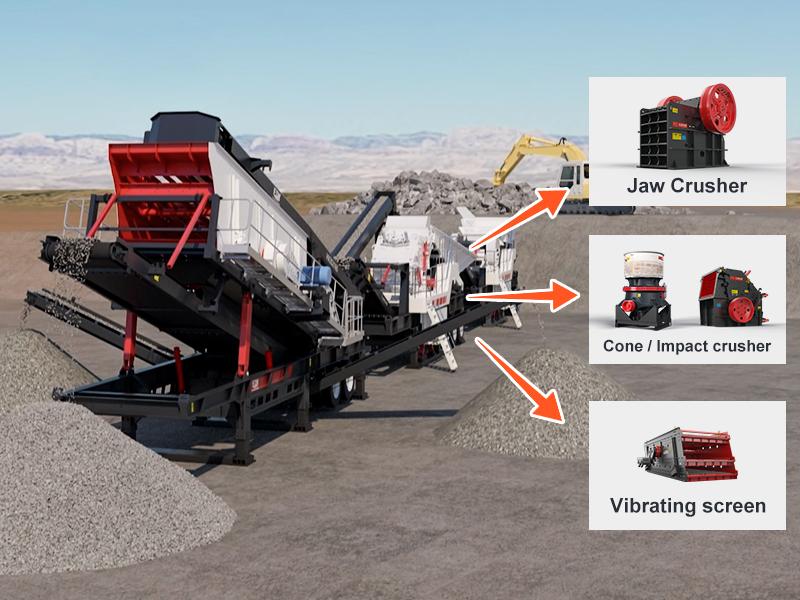

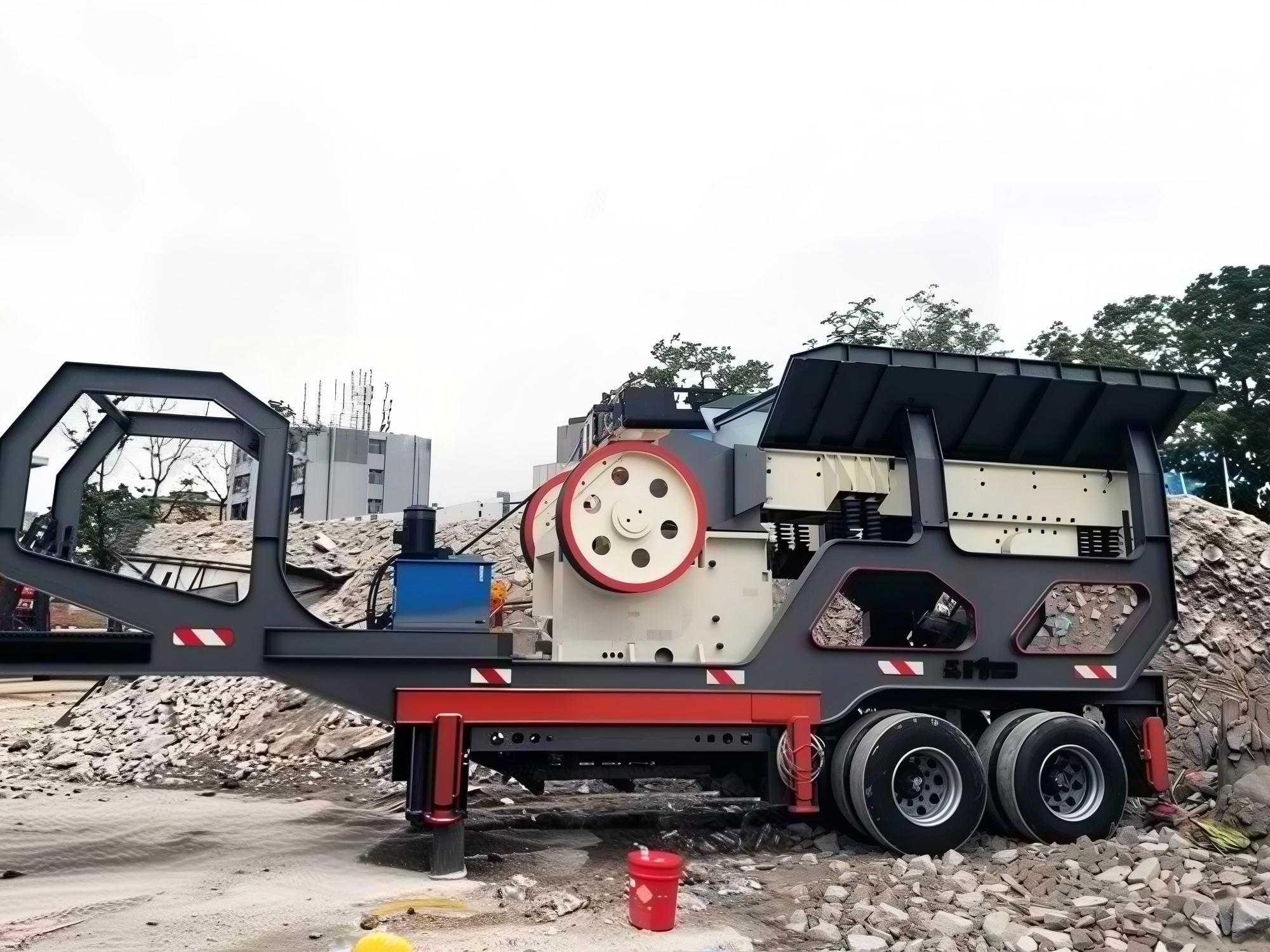

A mobile jaw crusher is a typical type of mobile crusher. It has a jaw crusher on a mobile car frame, usually, a feeder, a conveyor belt, and a screener are also equipped to form a complete crushing production line.

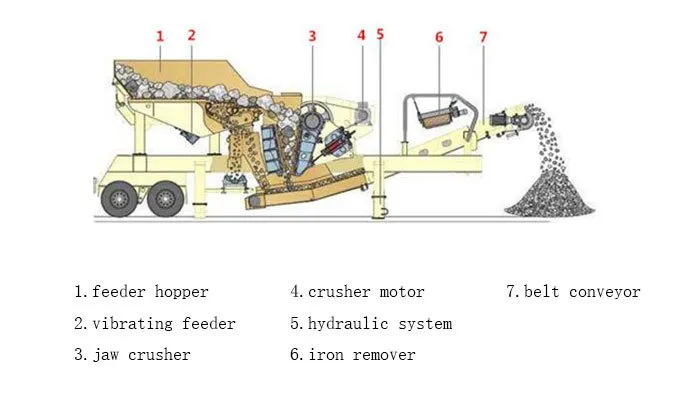

The mobile jaw crusher has a simple structure, mainly including frame assembly, main engine, power system, hydraulic electric control system, etc.
优势Advantages
Good flexibility:
The mobile jaw crusher adopts a mobile frame as the carrier of the entire crushing unit, and the equipment is pulled in and out of the work site by the front car, which is simple to install, convenient and flexible.
Strong stability:
The major unit modules are integrated, the body and the frame are seamlessly integrated, the overall configuration of the machine is balanced and reasonable, and the production process is more assured.
High output:
equipped with high output jaw crusher.
Reasonable price:
factory direct sale, after-sale service is guaranteed.
Versatile use:
AGICO mobile jaw crusher can be applied in various industries for processing more than 200 types.
