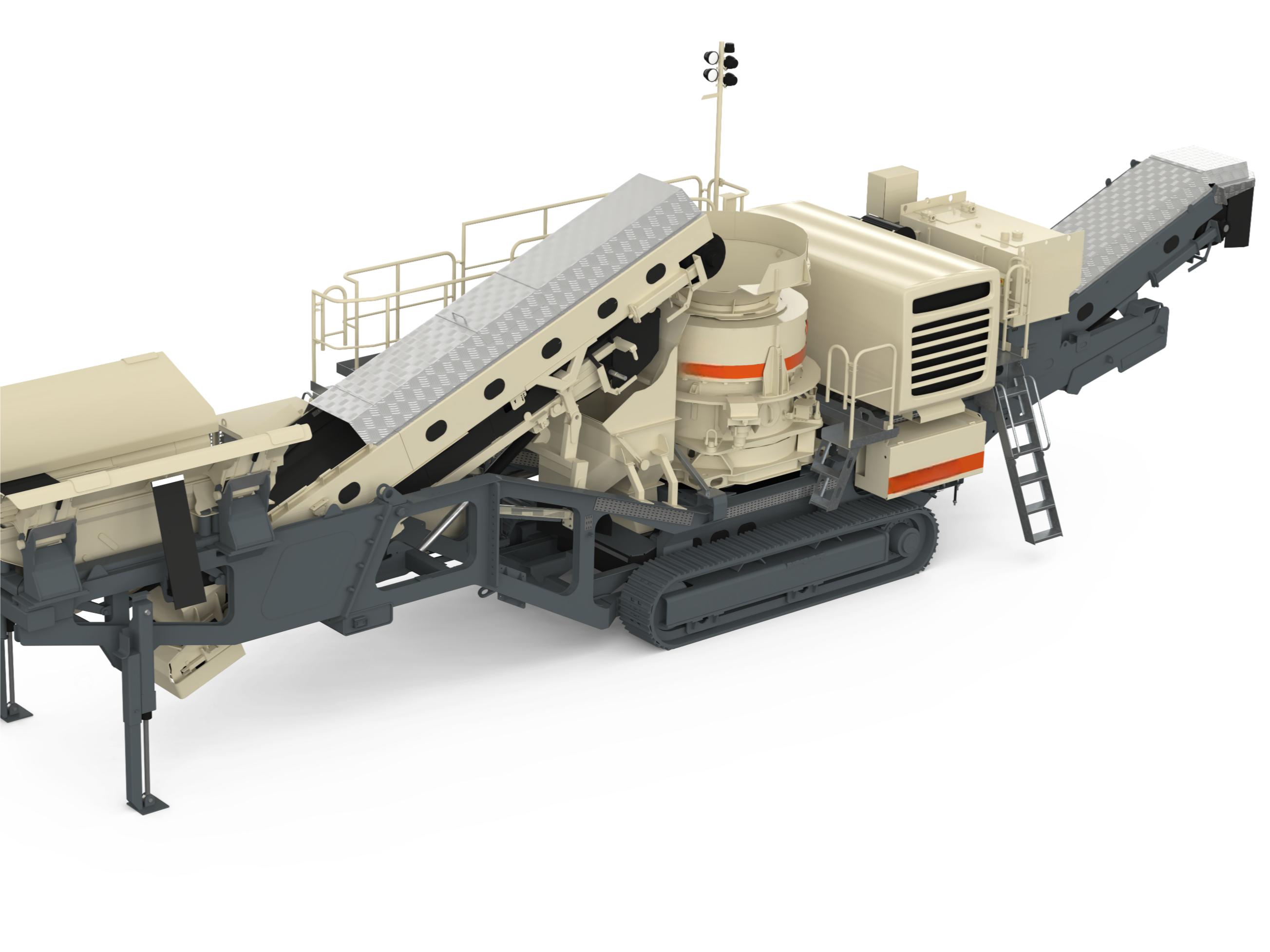

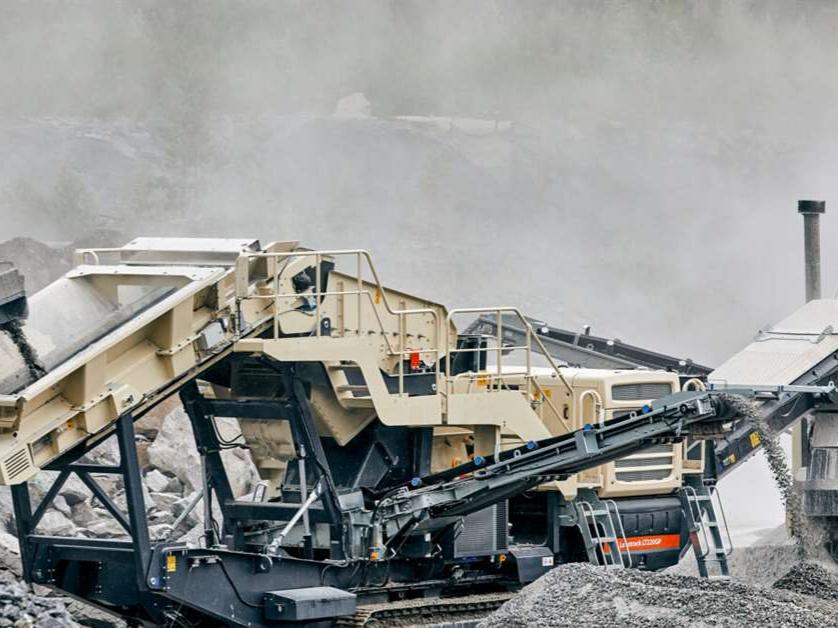

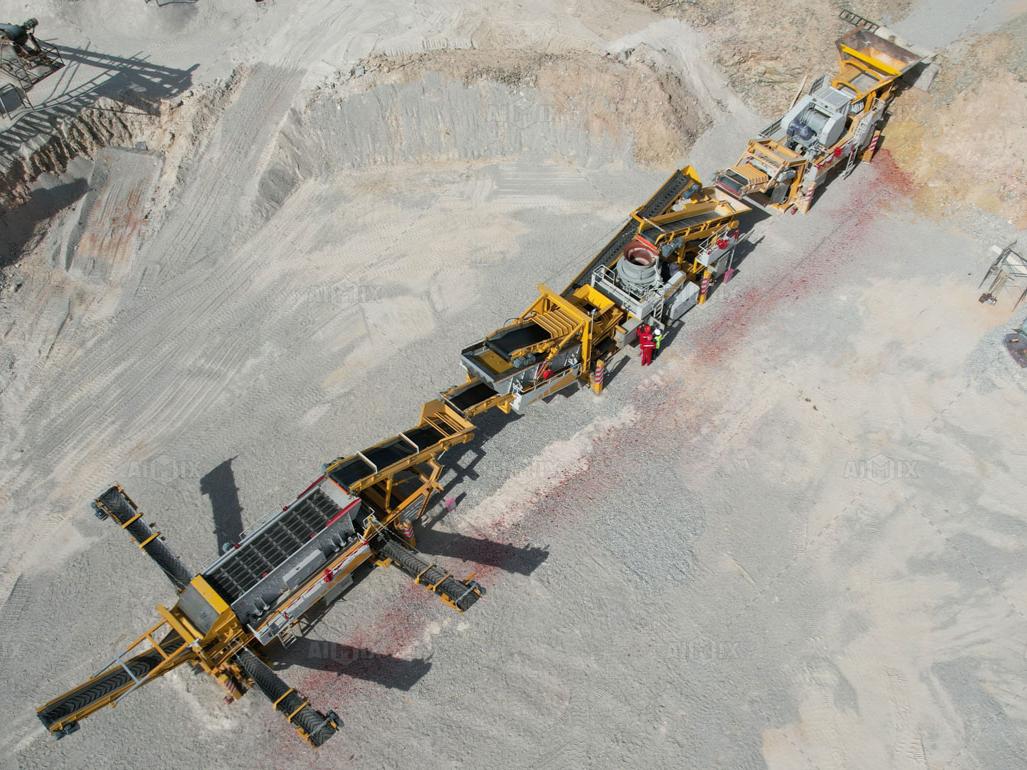

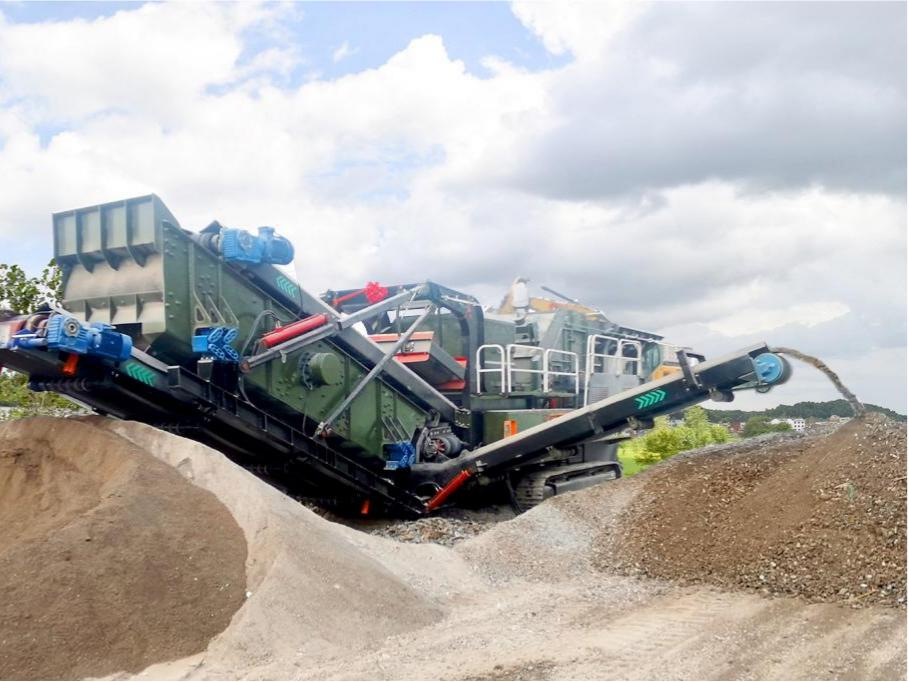

The mobile cone crusher station is suitable for the processing of various hard materials, such as limestone, bluestone, granite, river pebble, limestone, basalt, etc. It can be used with different series of cone crushers for materials of different properties. It is not only applicable to Strong and high production efficiency.
| 项目Item | NS1848PSG0917 | NS1860PSG1324 | NS1848HD100 | NS1860HD200 | NS2160HP300 |
| 运输长度Transportlength(mm) | 12600 | 13800 | 12600 | 14300 | 16850 |
| 运输宽度Transport width(mm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| 运输高度Transport height(mm) | 4500 | 4500 | 4500 | 4500 | 4500 |
| 最大长度Maximumlength (mm) | 14730 | 14860 | 14730 | 14860 | 17940 |
| 最大宽度Maximum width(mm) | 3620 | 3850 | 3620 | 3850 | 3870 |
| 最大高度Maximum height(mm) | 6680 | 7100 | 6680 | 7100 | 7600 |
| 轮胎配置Tire configuration | Two axis | Three axis | Two axis | Three axis | Three axis |
| 破碎机型号Model of Crusher | PSG0917 | PSG1324 | HD100 | HD200 | HPY300 |
| 最大进料粒度The largest feed size(mm) | 100 | 150 | 200 | 300 | 150 |
| 处理量Processing capacity(t/h) | 60-120 | 120-200 | 80-180 | 120-280 | 180-300 |
| 振动筛型号Screen type | 3YK1848 | 3YK1860 | 3YK1848 | 3YK1860 | 3YK2160 |
| 主皮带机型号Main belt type | B800×7.5m | B800×8.5m | B800×7.5m | B800×8.5m | B1000×8.5m |
| 发电机组型号(选配) Type of gene rator set(optional)(kw) |
250 | 400 | 300 | 400 | 500 |
The mobile cone crusher uses an eccentric sleeve to drive the moving cone to rotate, causing the material to be repeatedly squeezed, ground, and bent between the moving and fixed cones, achieving lamination crushing. After the material is crushed to the set particle size, it is discharged from the bottom discharge port. Material that does not meet the size requirements is returned to the crushing chamber for further crushing (closed-loop system). The discharge port (CSS) can be automatically adjusted via a hydraulic system and features overload protection to ensure the safe and stable operation of the equipment.
The mobile cone crusher is an integrated mobile crushing equipment consisting of a chassis system, crushing host, feeding system, screening system, conveying system, power and control system, hydraulic system, and other modules.
优势Advantages
Integrated unit design, highly mobile
Strong overall performance, flexible and compact combination, low site requirements, and can operate anywhere. Compact structure, small turning radius, convenient and quick access to the site, and can be driven away immediately after use.
High efficiency and energy saving
Adopting advanced technology, high production efficiency, reducing raw material transportation links, and saving additional transportation costs. Lamination crushing principle, high crushing efficiency, good product particle shape, and large crushing ratio, up to 1:4 or even higher.
Diverse configurations
Depending on different customer processing needs, the sand making production line can be provided with diverse configurations, allowing for single-machine or multi-machine combination operation, realizing the integration of crushing and screening functions.
Automated system control
Utilizing an automatic control program to control the system process, the Relytec intelligent control panel is easy to operate; coupled with a wireless remote control, it can reduce auxiliary operators, greatly improving work efficiency and saving labor costs.
Technical assurance and excellent quality
High-quality materials are selected, the design structure is reasonable, and the technology is guaranteed. Each machine undergoes multiple layers of rigorous factory inspection to ensure its quality. High crushing efficiency, good product particle shape.
