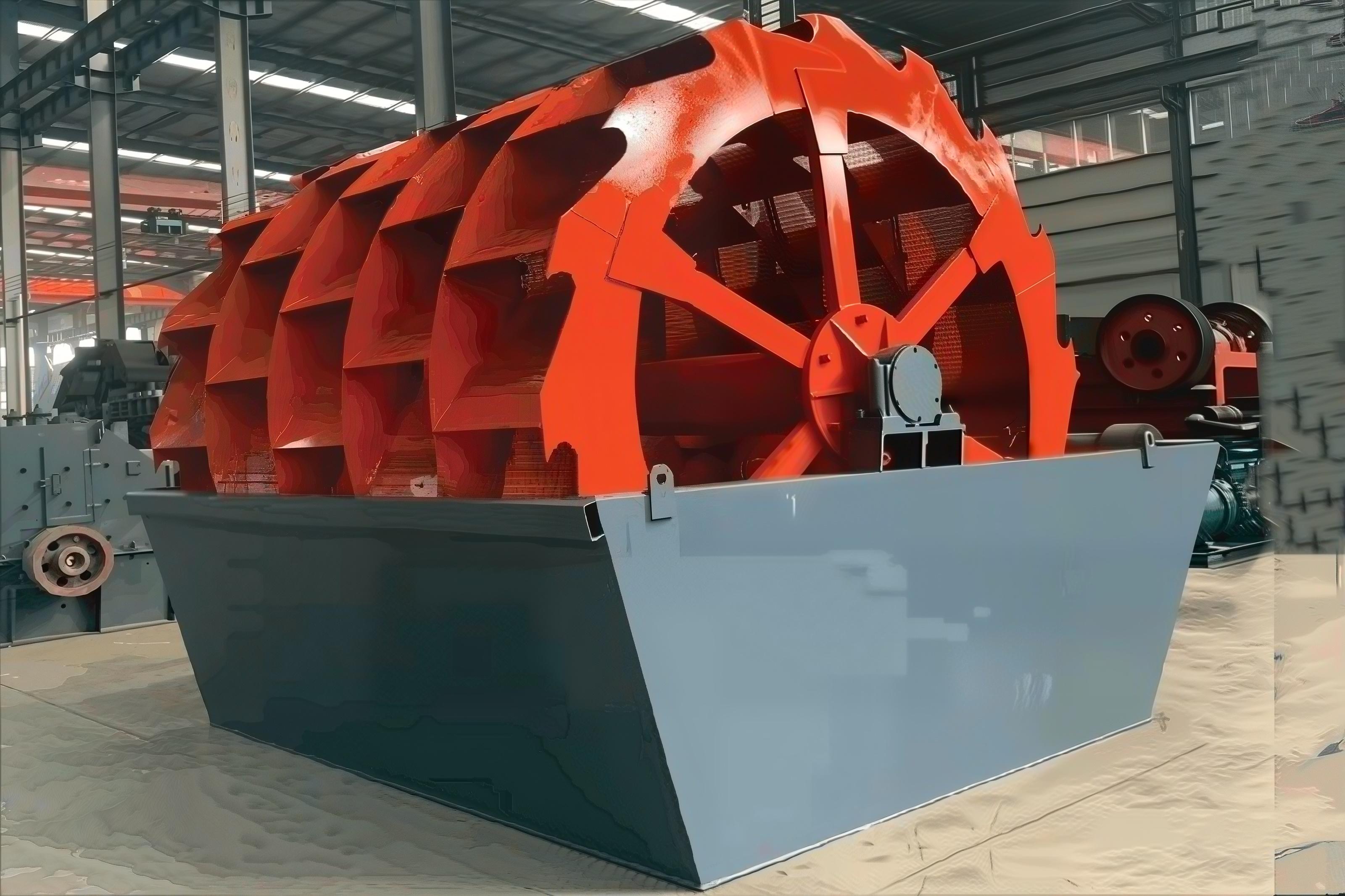

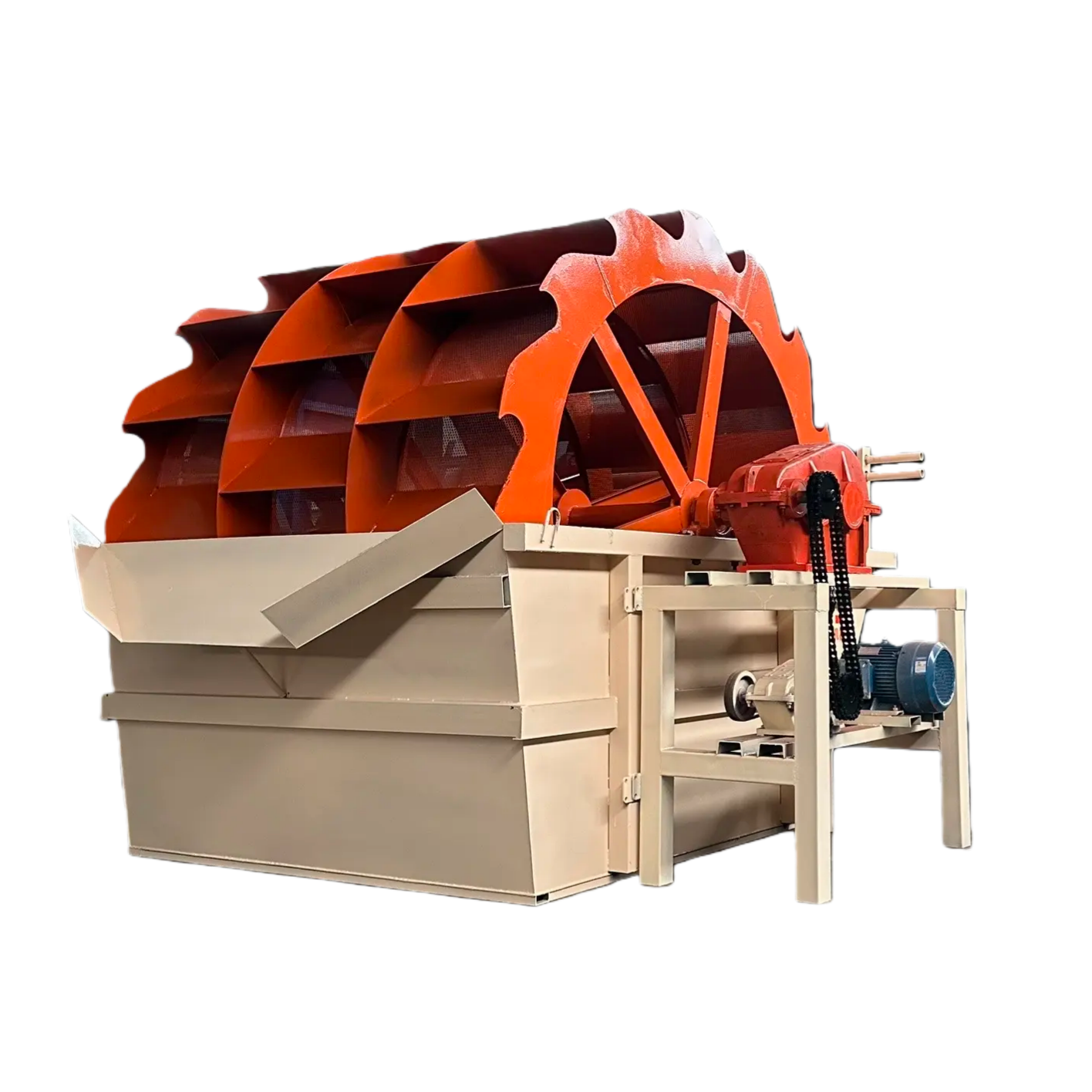

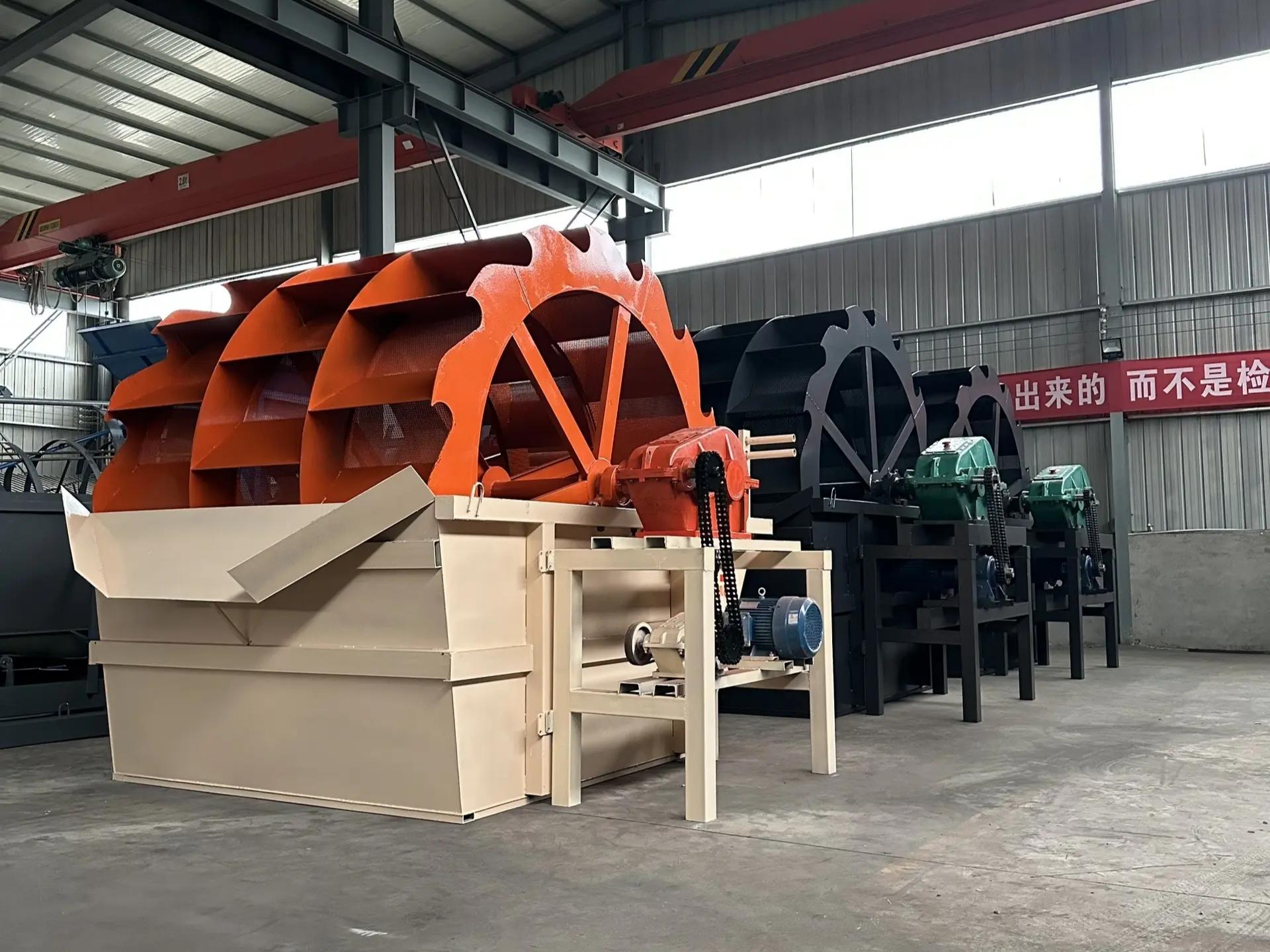

Bucket sand washing machine is washing equipment for sand and slag particles. The bucket wheel rotary sand washing machine can destroy the water vapor layer covering the sand while removing the impurities covering the surface of the sand and stone, so as to achieve the effect of high-efficiency sand washing.
| 规格Model | XSD2610 | XSD2816 | XSD3016 | XSD3620 |
| 轮斗直径Diameter(mm) | 2600 | 2800 | 3000 | 3600 |
| 转速Rotation speed(r/min) | ≤10 | ≤10 | ≤10 | ≤10 |
| 处理能力Capacity(t/h) | 20-50 | 30-70 | 50-100 | 80-150 |
| 电机功率Power(kw) | 7.5 | 11 | 15 | 18.5 |
| 总重量Weight(kg) | 2.7 | 5.3 | 6.5 | 9.8 |
| 外形尺寸Dimension(mm) | 3321×2312×2683 | 3810×2820×2883 | 3830×2972×3200 | 4456×3479×3688 |

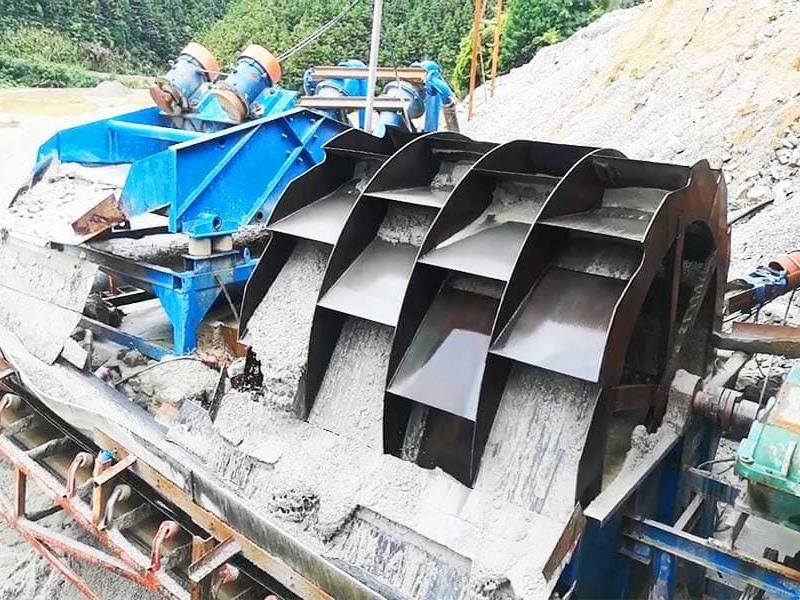

When the sand washing machine is working, the impellors run slowly with the decelerator motor. The sand and stone flow into the washing tank from the feeding launder grinds with each other and roll with the impellor slowly so that the impurities covered in sand are washing out.
Meanwhile, the washing water will take out some waste and impurities from the washing tank. The washed sand and stone are lifted up by the impeller. When it rolls up slowly, the water begins to drop through the meshes and fall back into the washing tank, the water can be fully used.
Finally, the clean sand and stone go out of the washing tank and the washing process is over.

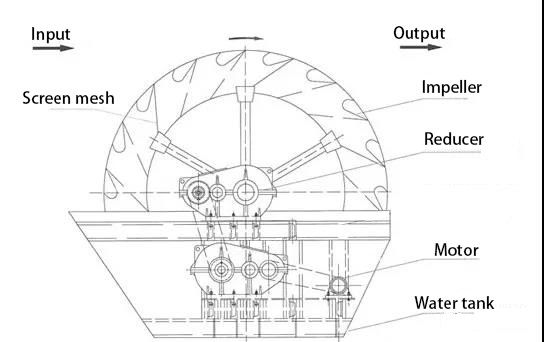

The main parts of a bucket wheel sand washer include feeding, bucket wheel, reducer, motor, washing tank, screen, and discharging.
优势Advantages
Higher sand quality with a lower moisture content.
Recycled fine size 0.16-3mm sand, lower mud content.
Compact structure, multiple functions, easy install, convenient maintenance, small occupation area.
High capacity, after this sand washer 95% sand can be washed.
Solve sedimentation tank cleaning problem, higher economical profit.
The sand washing machines whose transmission gear is separated from water and sand to reduce the failure.
