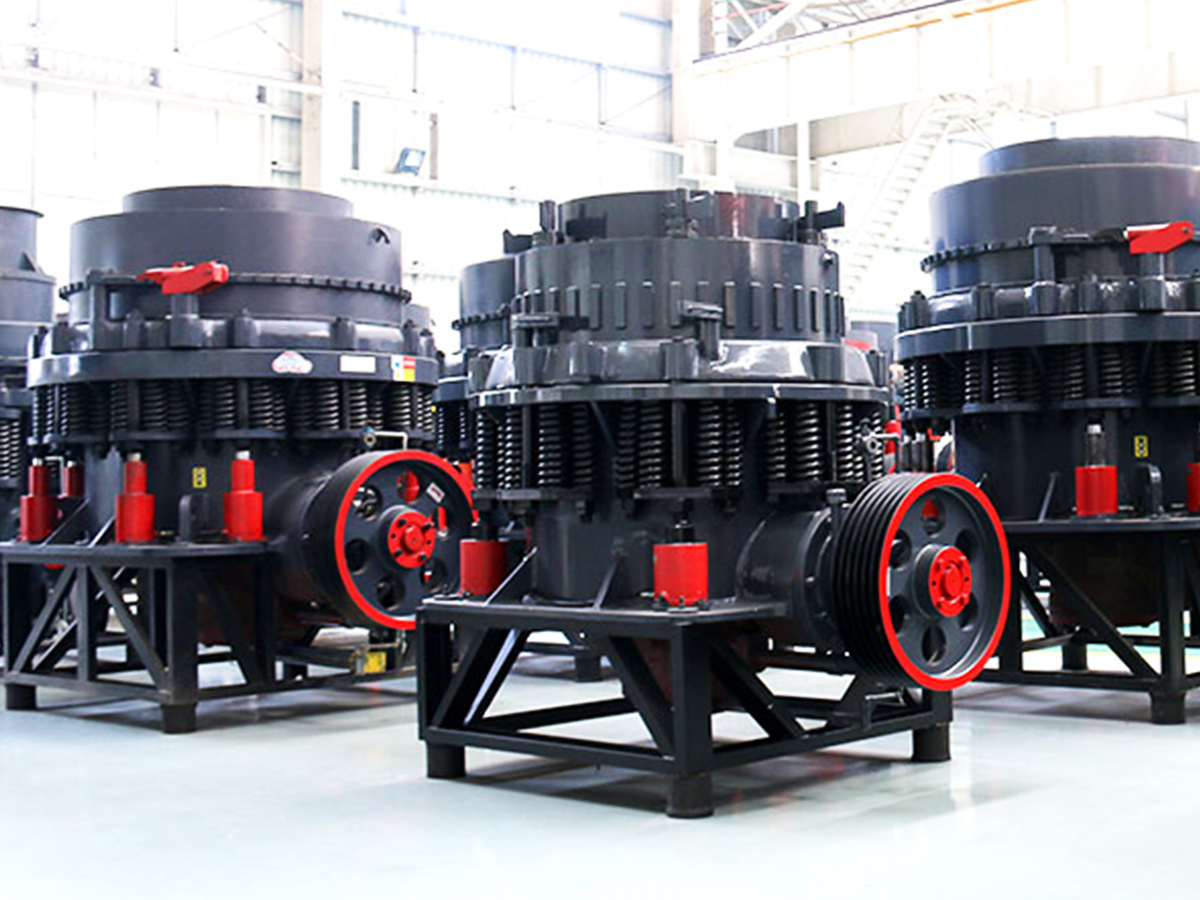

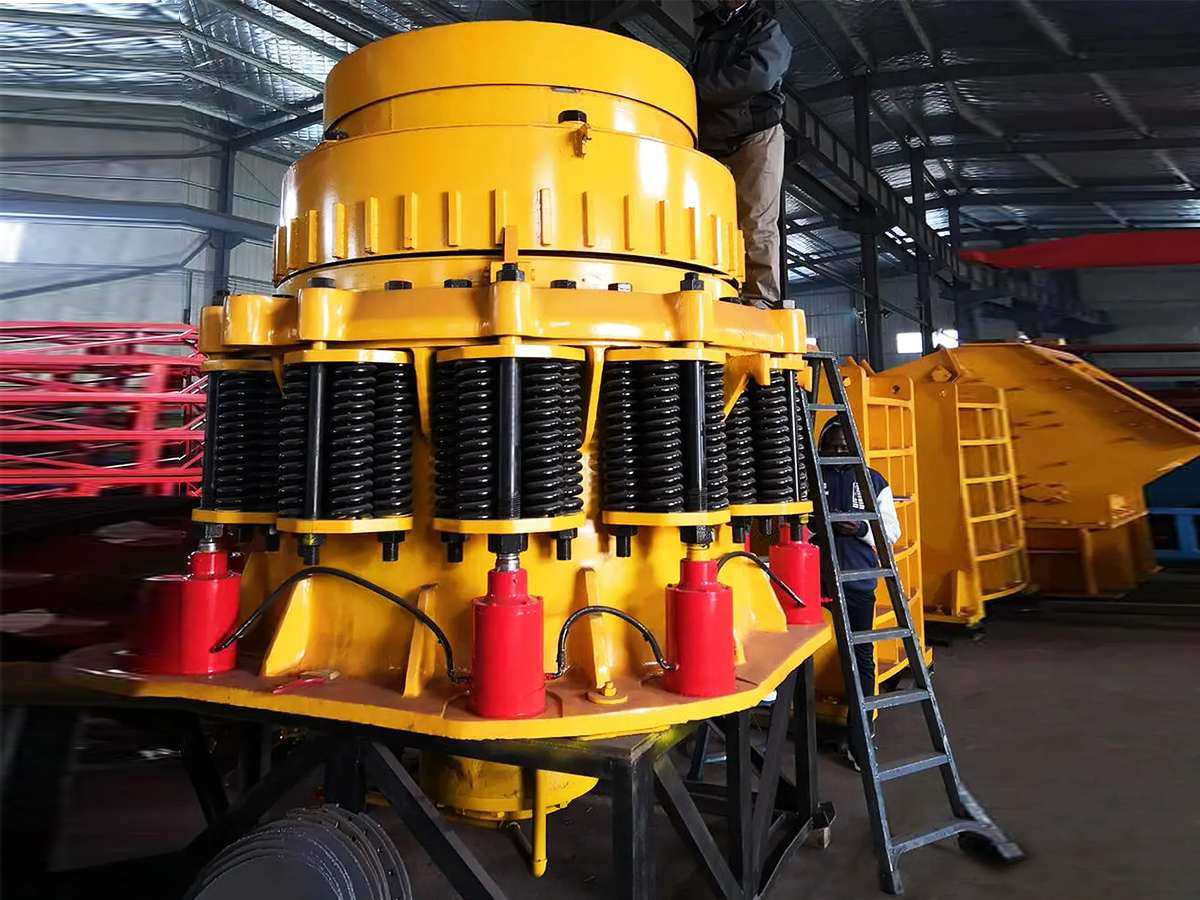

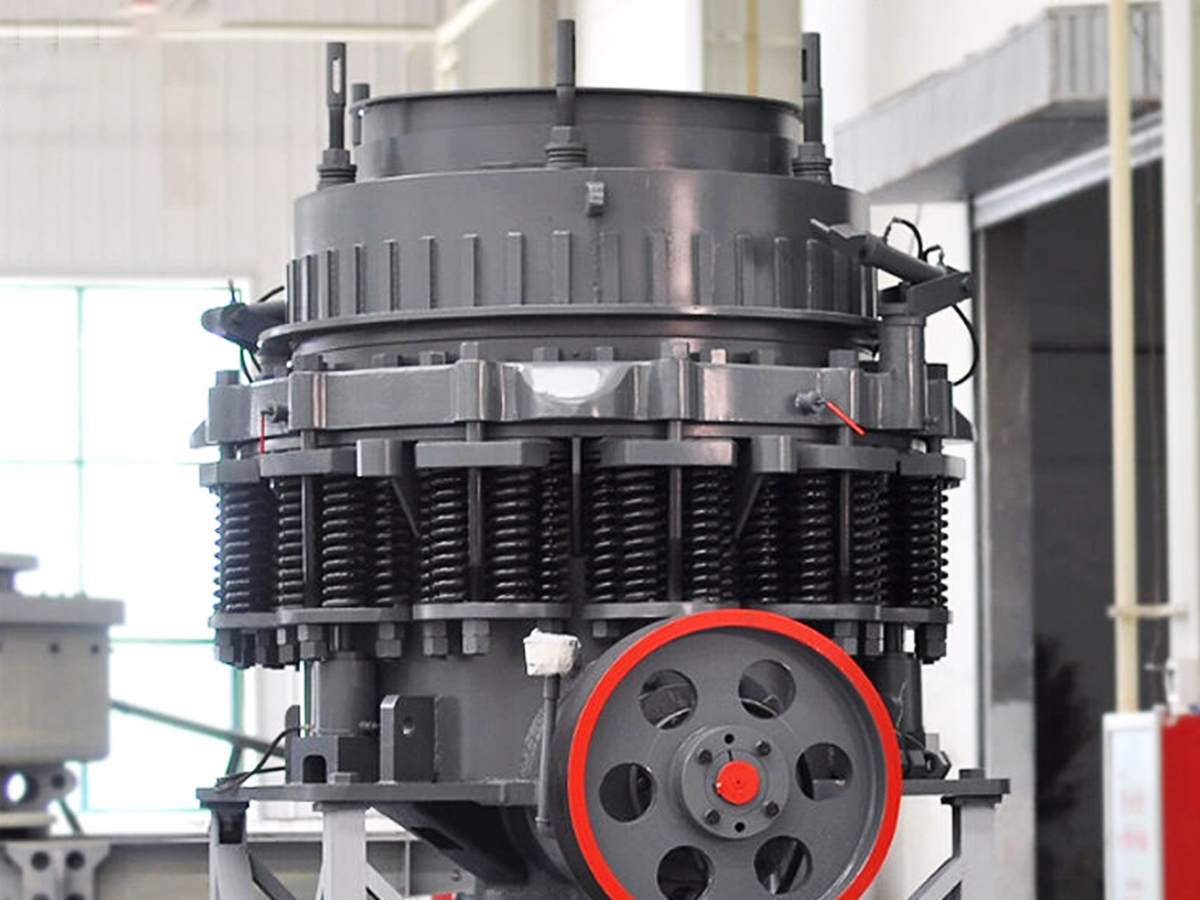

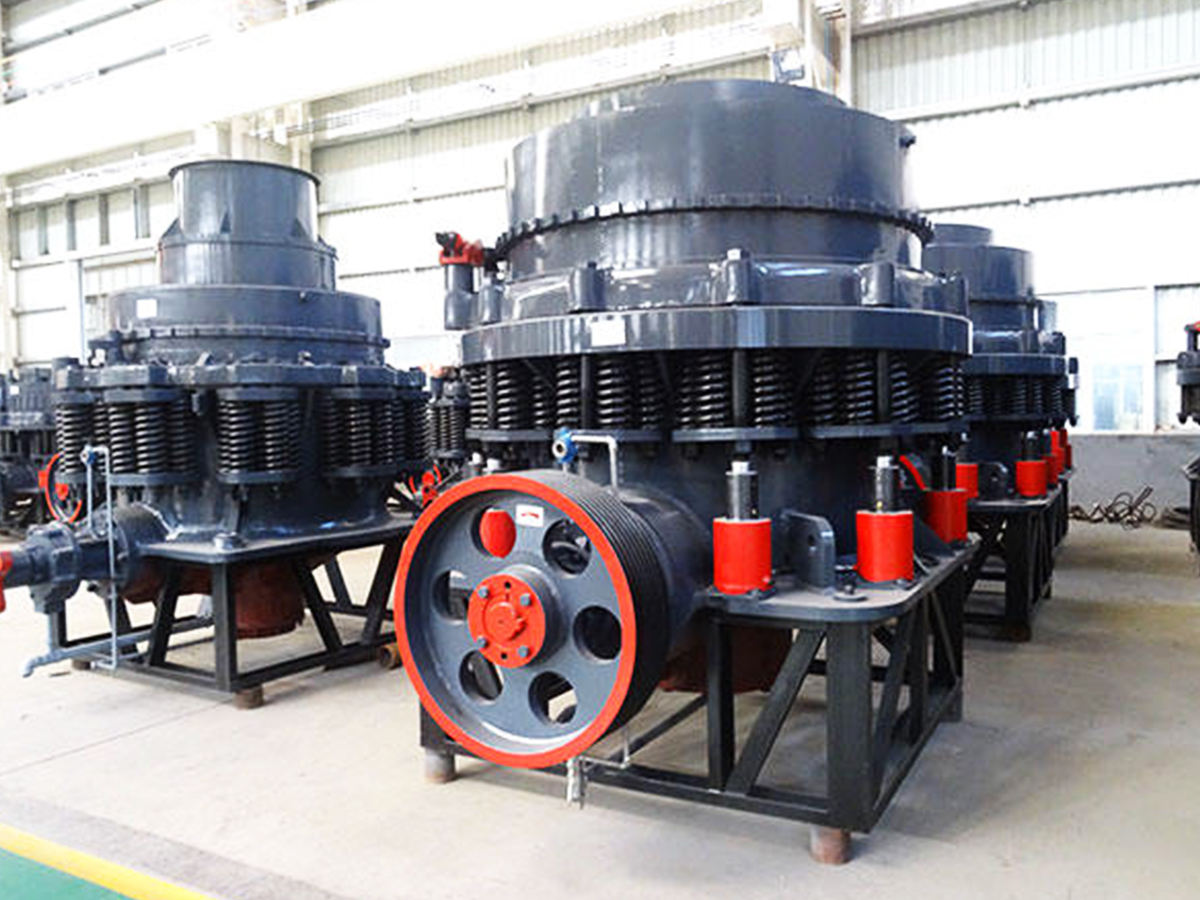

Symons cone crushing machine is based on the introduction and absorption of foreign technology, according to the needs of customers, based on the principle of laminated crushing and the concept of more breaking and less grinding.It is a modern design that integrates high swing frequency, optimized cavity shape,and reasonable stroke. High-performance crusher.
| 规格型号 Model | 腔型 Cavity type |
最大进料尺寸 Max.Feed size(mm) |
调节范围(mm) Adjusting range of output size | 处理能力 Capacity (t/h) |
主电机功率 Power (kw) | 重量Weight(t) |
| PSGB0917 | 标准粗型Standard coarse | 150 | 13-38 | 59-100 | 75 | 9.98 |
| PSGD0907 | 短头细型Short head coarse | 70 | 9-22 | 45-91 | 75 | 10.53 |
| PSGB1324 | 标准粗型Standard coarse | 205 | 19-51 | 100-180 | 160 | 22.46 |
| PSGD1308 | 短头细型Short head medium | 115 | 6-19 | 80-160 | 160 | 22.59 |
| PSGB1626 | 标准粗型Standard coarse | 228 | 25-64 | 299-450 | 220 | 43.27 |
| PSGD1608 | 短头细型Short head medium | 150 | 6-19 | 136-280 | 220 | 43.87 |
When it is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

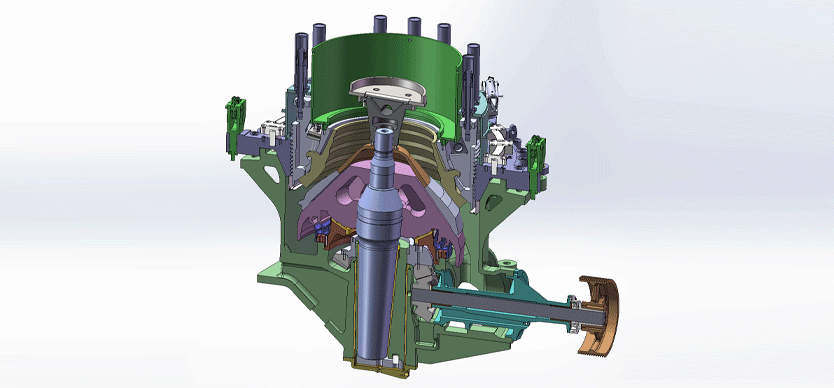

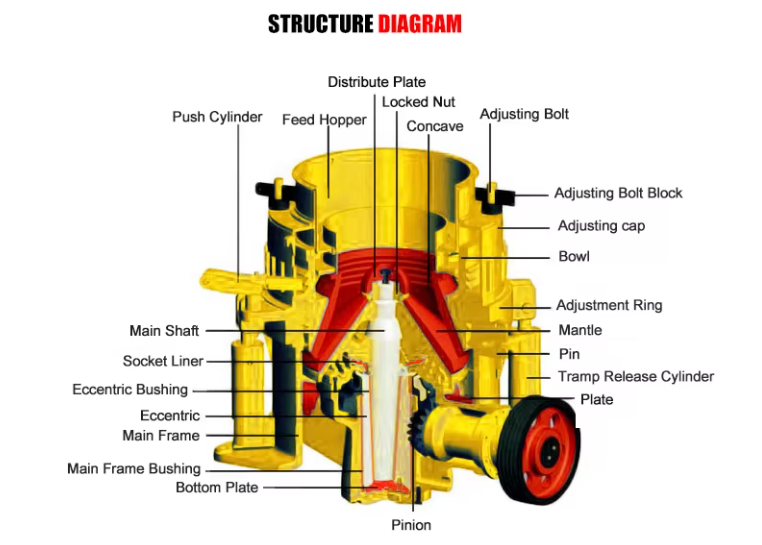

The structure of the cone crusher mainly consists of the frame, horizontal shaft, moving cone body, balance wheel, eccentric sleeve, upper crushing wall (fixed cone), lower crushing wall (moving cone), hydraulic coupling, lubrication system, and hydraulic system.
优势Advantages
1. high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.
2. Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania etc.
3. It is made of high quality raw material and has reasonable structure design. So it has longer running performance and even granularity.
4. The middle and large size symons cone crusher adopts hydraulic clear chamber. That reduces its down time.
