Wet Pan Mill i used for gold ore grinding,especially for small size rock gold,which can grind gold ore into 100-150mesh.Many customers would like to import wet pan mill because of low cost and high productivity. The most important thing is that using wet pan mill could get pure gold directly,which is suitable for people who want to start from small scale business.
| 型号 Model | 规格Specification(mm) | 进料粒度 Feed size(mm) |
转速Speed(r/min) | 处理量(金矿) Capacity(gold mine) (t/d) |
配用功率 Power(kw) | 机重 Weight(t) |
| 1600A | 1600×400×200×500±20 | <25 | 10-12 | 30-35 | 30 | 14.5 |
| 1500A | 1500×350×150×460±20 | <25 | 10-12 | 20-25 | 22 | 12.3 |
| 1500B | 1500×300×150×420±20 | <25 | 10-12 | 20-25 | 18.5 | 11.3 |
| 1400A | 1400×350×150×350±20 | <25 | 10-12 | 15 | 15 | 10 |
| 1400B | 1400×300×150×350±20 | <25 | 10-12 | 15 | 15 | 8.5 |
| 1300A | 1300×250×150×350±20 | <25 | 10-12 | 10 | 11 | 8.5 |
| 1300B | 1300×200×150×350±20 | <25 | 10-12 | 10 | 11 | 7.5 |
| 1200A | 1200×200×80×270±20 | <25 | 12.5 | 8 | 7.5 | 5.5 |
| 1200B | 1200×180×80×250±20 | <25 | 12.5 | 8 | 7.5 | 5 |
| 1100B | 1100×180×80×250±20 | <25 | 12 | 5 | 5.5 | 4 |
Gold ore grinding wet pan grinder mill machine sale price is attractive because our Double Wet Wheel Grinding Machine comes from the manufacturer. And our factory not only produce Double Wet Wheel wet pan mill, like style 1200, 1400,1600, but also produce three wheels wet pan grinding mill equipment.

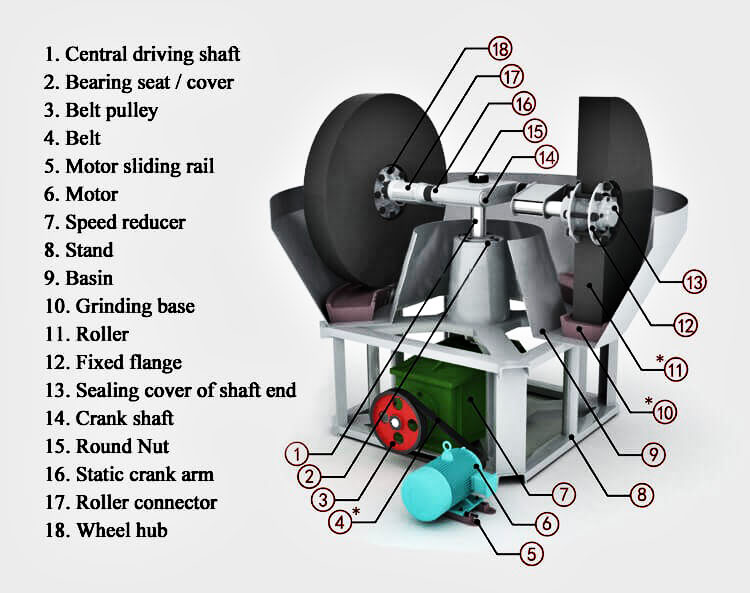

Main parts of wet pan mill are frame, basin, grinding roller, grinding base, speed reducers, motor and etc. Firstly, motor transmits power to speed reducer, then center driving shaft transmits into horizontal shaft, finally grinding roller will move counterclockwise and material will be ground into fine particle in the wet pan mill.
【Main Parts of Gold Wet Pan】Motor, stand, basin, roller, grinding base, bearing, reducer, etc.

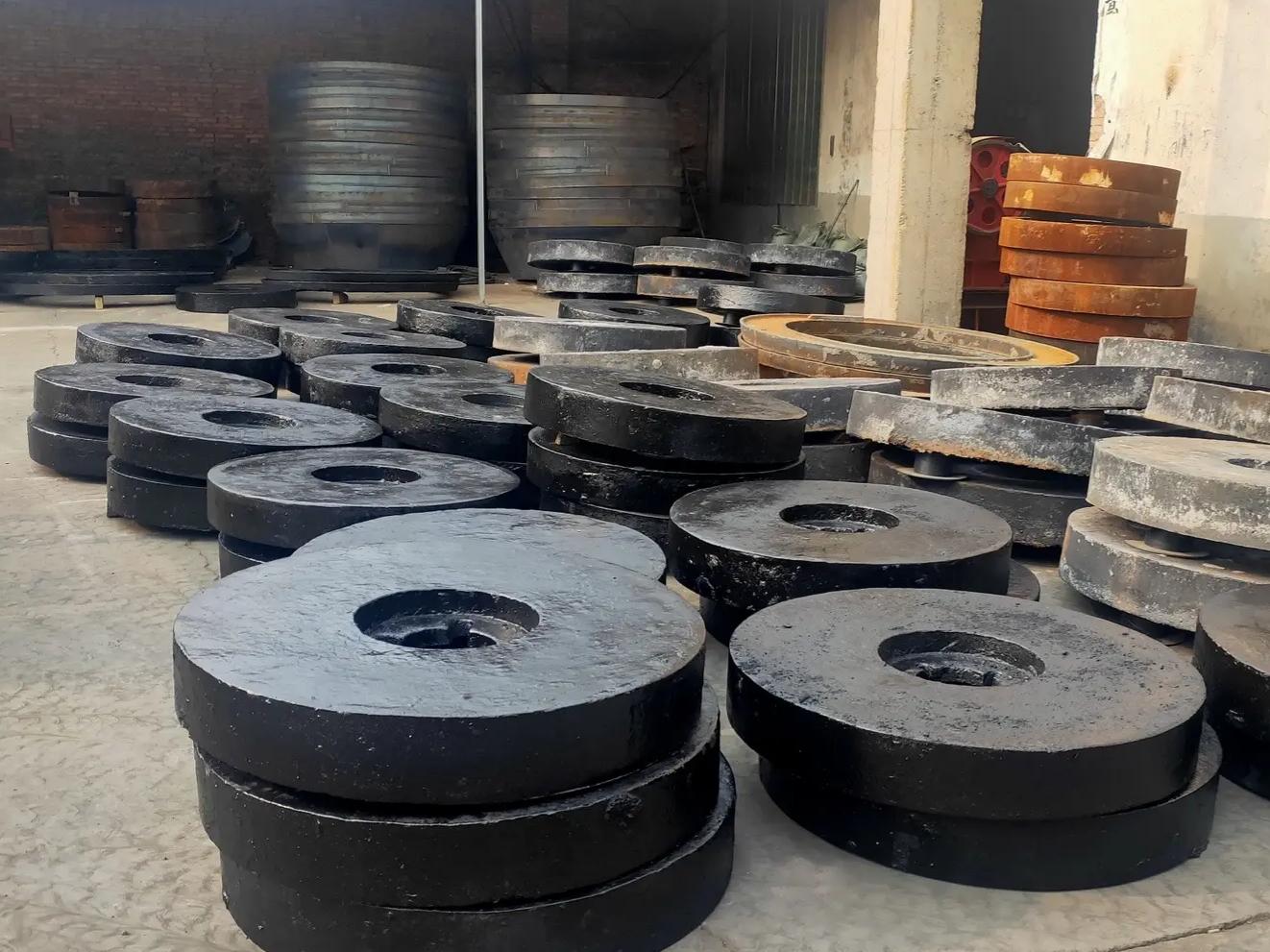

(1) Roller Material: 6% manganese alloy steel, which can last at least 3 years.
(2) Ring Material: Optional casting steel, casting iron and manganese steel. Thickness: Standard 85mm Steel.
(3) Steel stand: A-2 standard steel frame
(4) Basin: 5mm thickness steel plate
(5) Gearbox: Specially design for wet pan mill, 1-year quality guarantee
(6) Motor: Simens or China 1st level standard Brand
Advantages
High recovery ration, concentration ration
Easy installation, operation, and maintenance
low investment, long service life
1 year quality warranty, 24 hours customer service
