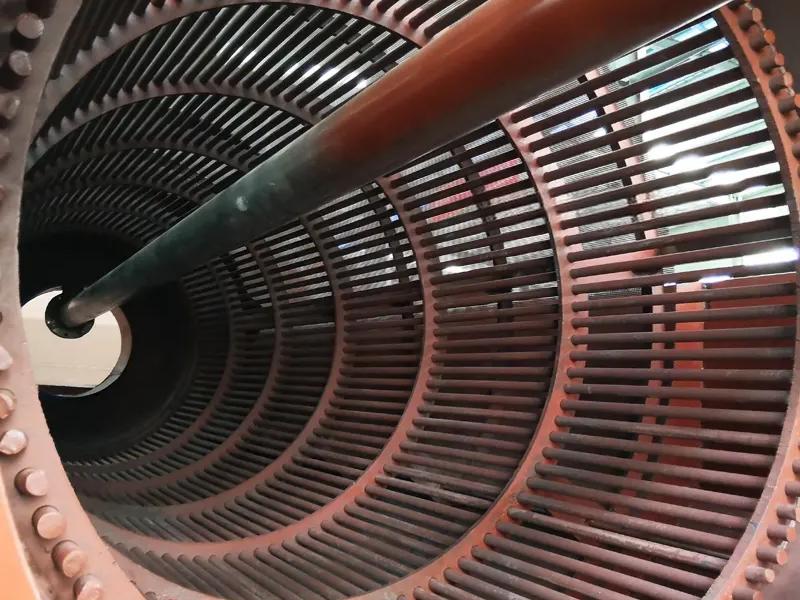

The main structure of the mobile trommel wash plant is the trommel screen,which is composed of severalcircular screens,which are inclined to the ground and there is a sealed isolation cover on the outside. Through the variable speed and deceleration system,the screening drum is rotated at a certain speed,and the materials are separated from the top down through the screening drum.The fine materials are discharged from the front end of the screening drum,and the coarse materials are discharged from the lower end of the screening drum.
The trommel screen can be equipped with a cleaning component to achieve uninterrupted cleaning of the screen body,so that the screening cylinder could keep clean during the working process,does not block,and does not affect the screening effect.
| 选金筛型号Model | GTS800×2500 | GTS1000×2500 | GTS1200×3000 | GTS1500×3000 | GTS1800×3000 |
| 筛体倾角Trommel slope | 7°-10° | 7°-10° | 7°-10° | 7°-10° | 7°-10° |
| 网孔尺寸Mesh size(mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| 电机功率Motor power (kw) | 2.2 | 3 | 4 | 5.5 | 11 |
| 筒体转速Barrel speed (r/min) | 28 | 22 | 18 | 16 | 14 |
| 产量Productivity(t/h) | 10-20 | 30-50 | 60-100 | 80-130 | 150-180 |
| 外形尺寸Dimensions(mm) | 2600×1200×1600 | 2800×1400×1800 | 3900×1600×2350 | 3900×2100×2950 | 4050×2600×3550 |
| 溜槽Sluice box | |||||
| 规格Size(lengthxwidth)(mm) | 1500×1000 | 2000×1000 | 2000×1000 | 6000×1000 | 6000×1000 |
After the raw material is fed into the trommel screen, it will be lited and dropped by the rotating cylinder, and this motion will run along the cylinder repeatedly. At the same time,the high-pressure water from the water pipe, which is provided by the water pump to continuously wash the material, and the fine particles go through the screen hole and discharge from the discharge trough, and then flow into the gold chute or other mineral processing equipment for separation. The coarse particles move forward until they are.
expelled from the tail of the trommel. After finishing the work in one place, the equipment can be moved to the next place quickly and conveniently.

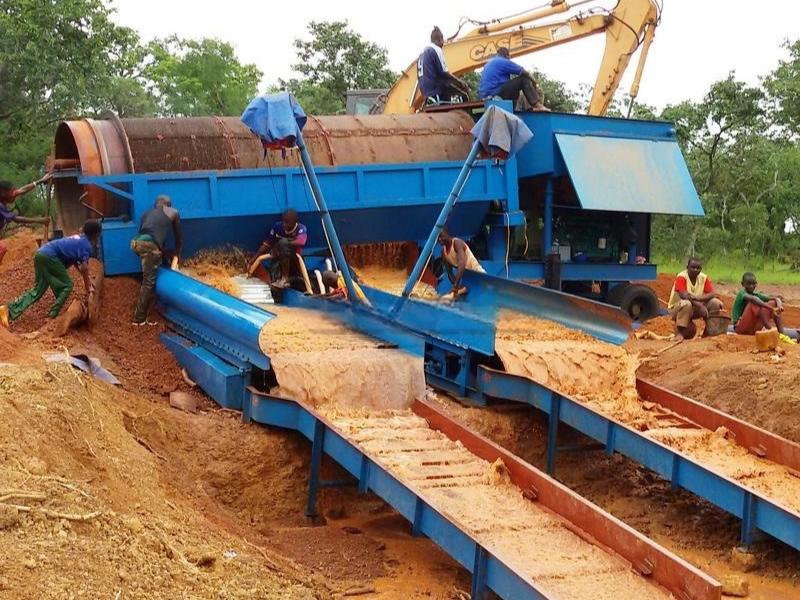

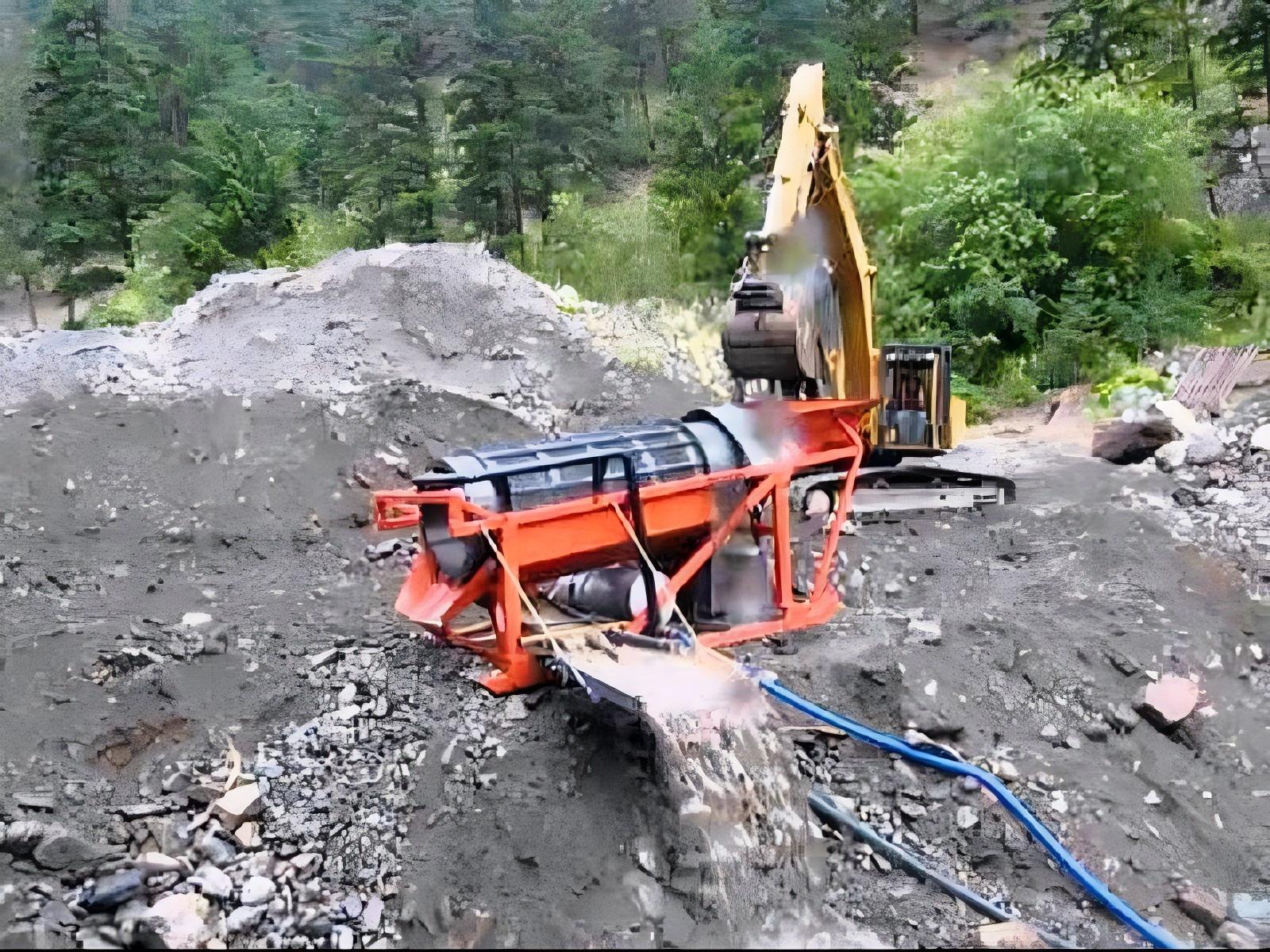

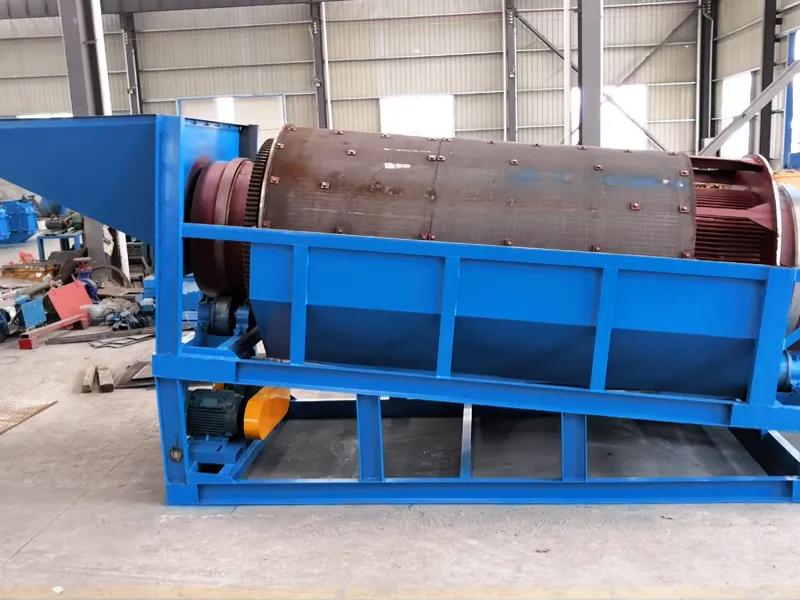

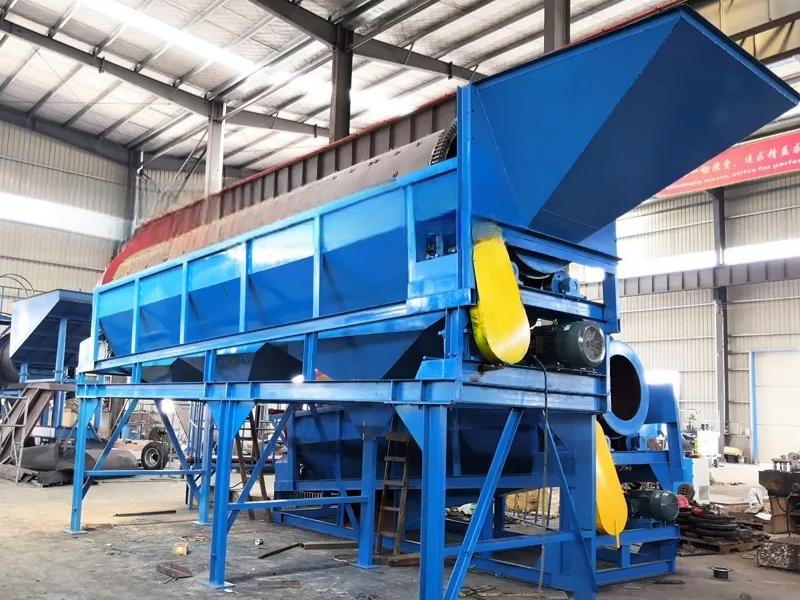

The gold trommel screen mainly comprises a motor, a reducer, a roller device, a machine frame, a sealing cover, and an inlet and outlet. It normally works together with a sluice box or vibration sluice machine, water pump, gold shaker table, etc, to form a complete alluvial gold wash plant.
Advantages
1. The main advantage is easy to move, can be dragged by loader or excavator can easily.
2. Dis-assemble and assemble is convenient, only takes half an hour. can move from one site to another site easily.
3. Processing capacity 5-300 tons per hour.
4. Water consumption 200-600 cubic meters per hour.
5. Total power of the whole machine 30-60 kw.
6. Gold Recovery rate can be more than 90%.
